BM09DF 9" Replacement LCD Monitor for Mitsubishi E60 E68 M64 M64s CNC CRT

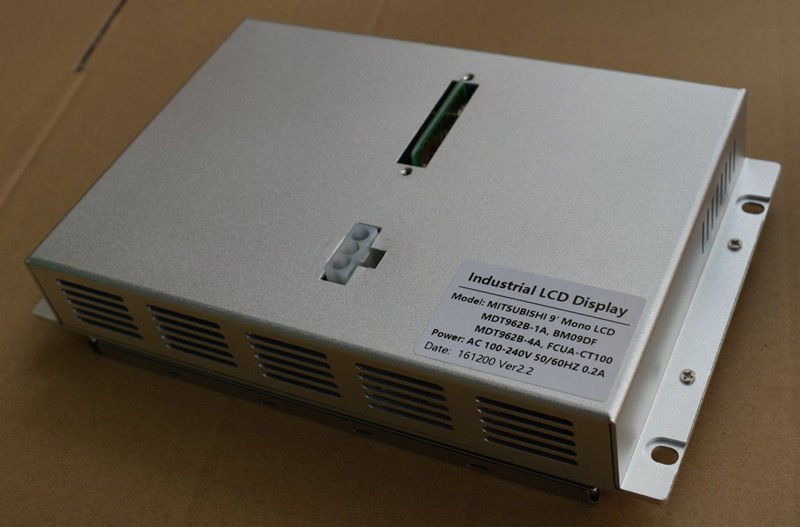

BM09DF compatible LCD display 9 inch for E64 M64 M300 CNC system CRT monitor BM09DF CRT monitors, for 9-inch single amber CRT monitors, Mitsubishi CNC system commonly used in the M3 M310 E60 M64 M64S C64 used in the system. I can also offer the monitor for M500 M520 CNC system.You can find from the store. Mitsubishi BM09DF, Mitsubishi M64 E60 CNC machine tools display system parameters: 1, CRT (cathode ray tube) size 9-inch, 90-degree view angle, Neck Diameter 20mm, color: amber-proof standard: T-Band Standard 2, the signal input: analog video signal (n) 0 - 2.3V, the horizontal line step waysync, TTL digital signal (positive polarity), field-step approach vertical sync, TTL digital signal (positive polarity) 3, scanning frequency: Line Frequency H = 24Khz, field frequency V == 50.5Hz 4, the video display size: horizontal 160mm +/- 3mm, vertical 110mm +/- 3mm 5. Power: AC100-230V (50 / 60Hz) 6, the signal input: VIA Standard 10 PIN EDGE connector Original BM09DF CRT monitors as follows: The replacement LCD display as follows: How to install: Displaying test:
