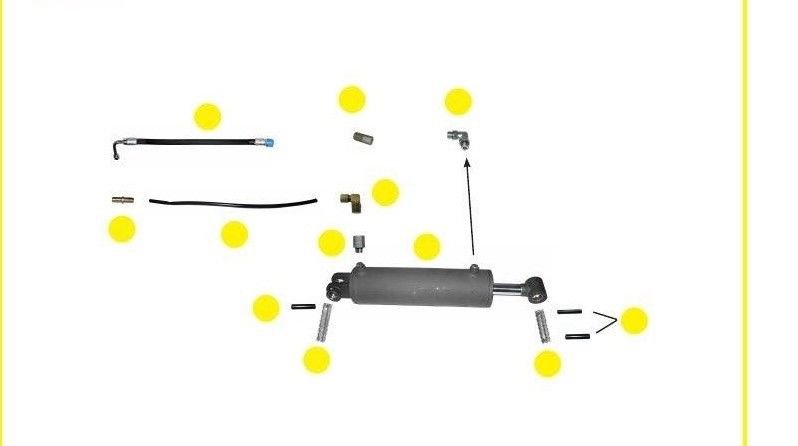

Maxon Cylinder Kit Gravity Down 266401-02
Maxon Aftermarket Liftgate Cylinder 3.5" x 10"




266401-02

NLM6401-02

1

Cylinder, 3-1/2” x 10” Stroke w/ Bearing


2

221416

NLM1416

3

3/8” x 2” Roll Pins


3

280635-01

NLM0635-01

1

54” Hose Assembly


4

906709-02

NLM6709-02

1

Flow Regulator Valve


5

906722-01

NLM6722-01

1

90° Elbow


6

906728-01

NLM6728-01

1

Dual Barb Fitting


7

224370-07

NLM4370-07

1

60-1/2” Plastic Tubing


8

202406

NLM2406

1

1/4” Elbow


9

228012

NLM8012

1

9/16” Adapter


10

203405-09

NLM3405-09

1

Cylinder Pin, 4”


11

260368-05

NLM0368-05

1

Cylinder Pin, 1” x 5”










Aftermarket parts

Application:

Maxon Models:
•Maxon 7225
•Maxon 7230

Replaces part #
•Maxon 266401-02
•Maxon 266401-01




Aftermarket Maxon



Model 7225/7230




OEM # 266401-02




Bore x Stroke 3-1/2" x 10"




Rod Diameter 1-1/4"




Cylinder Diameter 4"




Collapsed Length 23-1/4"




Extended Length 33-1/4"




Length to Base 1




Hole Diameter 1" & 1-1/8"




Length to End 1"




Weight 32 lbs.
