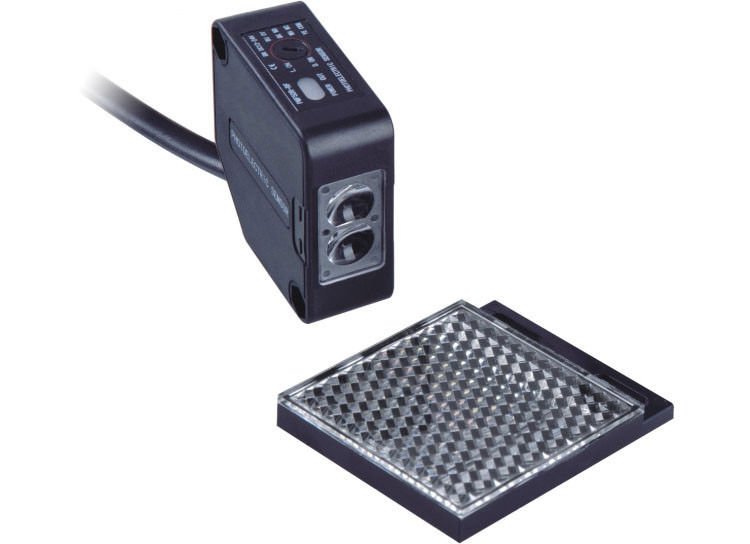

PMF50R 12/24V 7m/23ft Infrared Beam Sensor Photoeye Reflector Slide Gate Opener

More than 10 available

Details

Shipping: United Kingdom: free (more destinations)

Sales Tax: check

Condition: Brand new

Returns: 30 days, buyer pays return shipping (more)

*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

Description

Model: PMF50RF-RF
Sensing Type: Retro-reflective
Sensing Object Min 60mm opaque object
Sensing Distance: (*1) RP04: 0.1 to 7m RP05: 0.1 to 4.5m
Supply Voltage: 12-240V DC/AC
Power Consumption: Max 3VA
Light Source: Red LED (wave lenght 660mm)
Action Mode: Selecting Light On or Dark On via product
Control Output: Relay output (contact rating: 30VDC 3A Resistance Load, 250VAC, 3A Resistance Load, contact nt: 1C)
Response Time: Max 20ms
Circuit Protection: Reverse polarity protection, surge protection
Indication Light: Power indicator: Green Action indicator: red
Attended Mode: Output Cable
Ambient Brightness: Snlight: Max 30000Lux, Fluorescent: Max 30000Lux
Ambient Temperature: -20 + 65C (Non-freezing)
Ambient Humidity: 35-85% RH
Material: Housing ABS, Lens: PMMA
Protection Rating: IP67(IEC)
Cable Standard (*2) 5x5x0.2
Accessory: Bracket: IB02, Screw: M4*25
