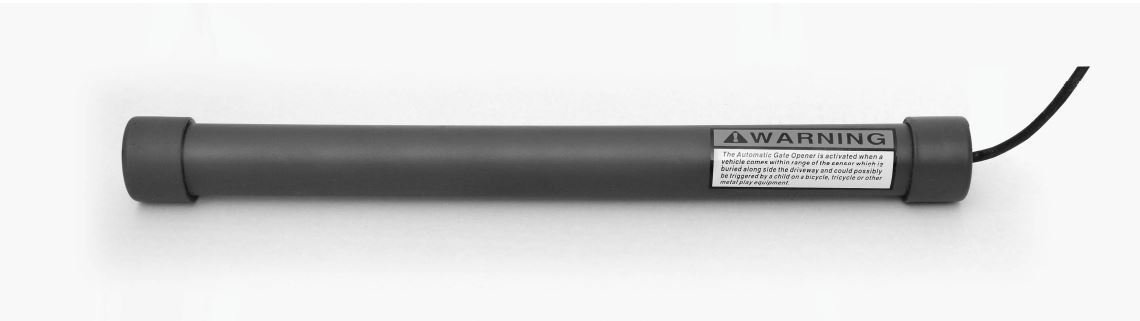

The NSEE NP3-50-5W is a free exit system that opens your automatic gate so you and your visitors can leave without having to use a remote, key fob or keypad. This is a self-contained system that connects directly to any gate operator without an external output board.
This is a 5-wire, system with a range adjustment board to install. This unit comes with 15 meters or 50' of attached direct burial cable and can also be used to complement any home automation or security system.
Buried beside the driveway, the NSEE is hidden and vandal-proof. It covers a 2 to 12 foot wide driveway. It only detects moving steel, preventing the gate from being tripped open by animals or blowing objects.
It accepts universal voltage 8-26V (AC and DC), and works with any gate operator: solar or powered. It has the lowest stand-by current in the market.
50' Direct burial cable
Based on magnetometer technology
Buried beside driveway means it is hidden and vandal-proof
Covers 2-12 foot wide driveway
Range adjustment board included
Low power consumption
Excellent for solar gates
Universal voltage AC and DC
Electronics full encased in polyurethane
Splice-able cable for easy field repairs
Two models: 5 wire
Five wire model has N.O. contacts
Works with any and all gate operators
Power Required: 8-28 VAC/DC
Standby Current: 1.50 mA
Nominal switching capacity (resistivity load): 1 Amp 30 Vdc, 0.5Amp 125Vac
Relay Contacts: SPDT, Floating, N.O
Max. switching power (resistivity load): 30 Watt, 62.5V A
Max. switching voltage: 110 Vdc, 125Vac
Max. switching current: 1 Amp
Relay Trip Time: 2 seconds
Operating Temperature: -25°F(-14℃) to 125°F(69℃)
Dimensions: 1-3/4”(44.5mm) diameter ╳16.5”(42cm) long.
Adjustable range: 3-12 feet typical installation.
Very low power consumption, ideal for battery application.
