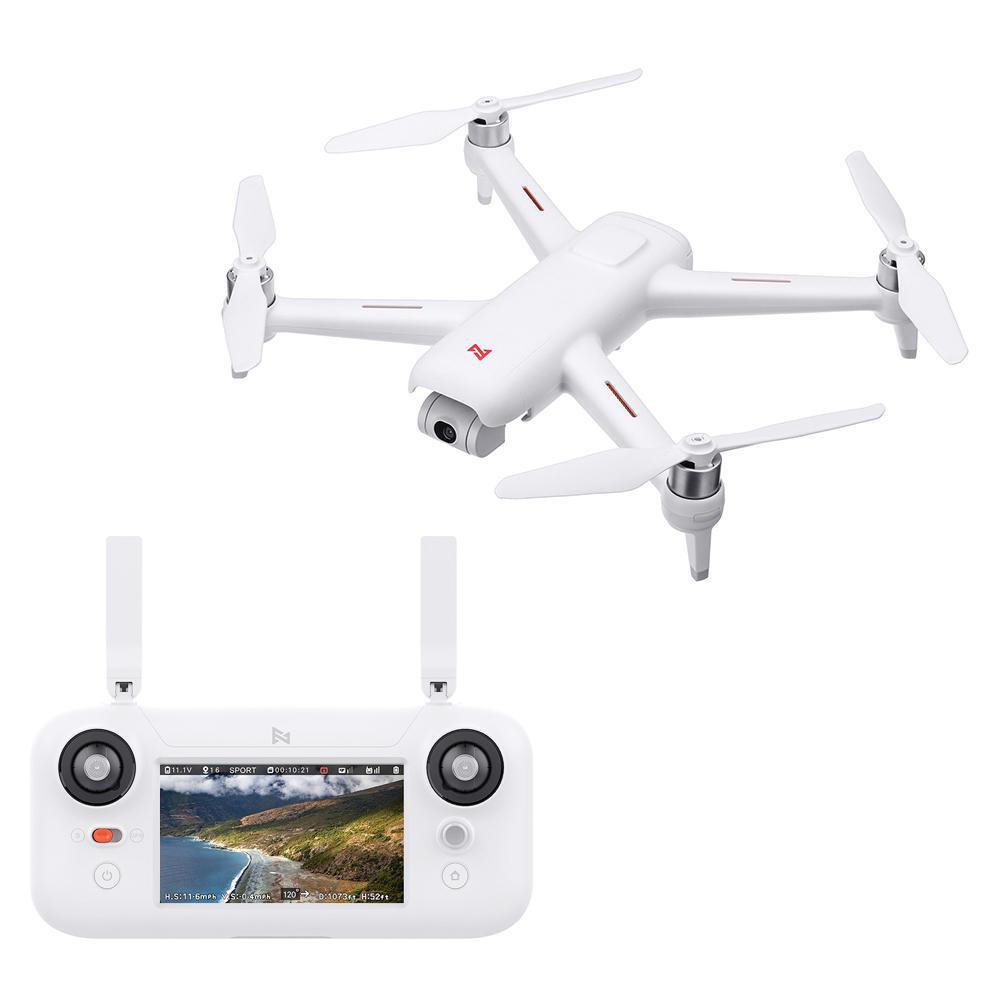

Xiaomi FIMI A3 5.8G 1KM FPV With 2-axis Gimbal 1080P Camera GPS RC Drone Quadcopter RTF - 5.8G FPV
Xiaomi FIMI A3 5.8G 1KM FPV With 2-axis Gimbal 1080P Camera GPS RC Drone Quadcopter RTF
FIMI A3 RC Quadcopter
Diagonal Size: 323mm
Hover Accuracy: when GPS Positioning is active, Vertical: ± 0.5 m & Horizontal: ± 1.5 m
Max ascending speed: 6 m/s
Max descending speed: 5 m/s
Max cruising speed: 18 m/s
Max R/C distance: about 1km
Flying Limited Altitude: 500 m
Flight time: 25mins
(25mins flight time if fully charged by 4.35HV balance charger; about 21mins flight time if charged by original charger)
Wind resistance: ≤ 4
Satellite positioning systems: GPS+GLONASS
Operating frequency: 2.4-2.483GHz; 5.725-5.850 GHz (40CH)
Battery: 11.1V 2000 mAh 3S Lipo Battery
Package Weight: 1.68kg
Package Size: 344x292.5x107mm
Sceen resolution: 480*272
Screen size: 4.3inch
Frequency: 2.4-2.483GHz; 5.725-5.850 GHz (40CH)
Max R/C distance: About 1000m
Built-in Battery: 2950 mAh lipo battery with about 2.5h working time
Charge port type: Micro USB
DVR: 720*480 video resolution
Controlled Rotation Scope: 0° ~ -90° Pitch angle
Stabilizaton: 2-aixs mechanical and 3-aixs electronical gimbal
HD 1080P Camera
Lens: FOV 80°
Focal Distance: 3.54 mm
Equivalent Focal Distance: 27mm
Sensor: 1/3.2" CMOS
ISO Range: 100 - 3200 for video; 100 - 1600 for picture
Shutter Speed: 4 ~ 1/8000 s
Max Bitrate: 60Mbps
Max Photo Resolution: 8M 3264*2448
Video Resolution: 1920x1080 30 fps / 1920x1080 25 fps
File System: FAT32 / exFAT
Image Format: JPG
Video Format: MP4
DVR: 1920x1080 30 fps / 1920x1080 25 fps
Rated Output: 14V 0.8A
Rated Input: 100-240V ~ 50/60Hz 0.3A
Rated Output Power :11.2W
Rated Output: 11.1V 0.8A
Rated Input:14V 0.8A
Applicable Battery: 3S
Charging Limit Voltage: 12.75 V
Rated Voltage: 11.1 V
Rated Capacity: 2000 mAh / 22.2 Wh
Weight: about 162g
Remarks: The flight time is tested with constant speed in breeze, the maximum flight time is 21mins for the single cell voltage at 4.2V;
25minis for the single cell voltage at 4.35V, and please use the charger supported 4.35V.
1. HD 1080P camera powered by Ambarella ISP processor and Sony CMOS sensor, provides perfect HD picture and video.
2. The 2-aixs mechanical and 3-aixs electronical gimbal provides stable and smooth footage in any situation.
3. With lightweight design, the drone flies faster.
4. Wth quick-release propellers, fast and powerful propulsion with durable,well balanced design.
5. Flight time is up to 25mins with 11.1V 2000mAh lipo battery.
6. 1km range 5.8G real time transmission system.
7. With DIY port, you can explore your way to play with the drone, like driving a servo, lighting a led.
8. Remote Controller is built-in LCD screen, DVR, and User Interface.
9. Headless Mode,no need to adjust the position of aircraft before flying .
10. One key to return function makes it easily to find the way home.
