£4.39 Add to Cart

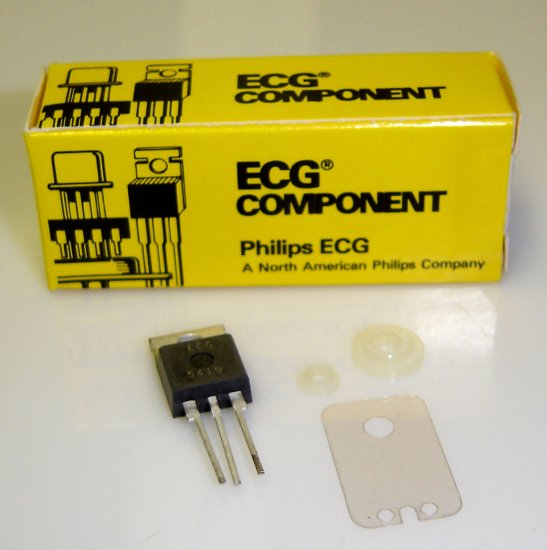

ECG5419 Silicon Controlled Rectifier 10A-600V

8 available

Details

Shipping: USPS calculated - check

Sales Tax: check

Condition: Brand new

*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

Description

Absolute Maximum Ratings:
Repetitive Peak Reverse Voltage (TC = +110°C), VRRM
ECG5419 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V
Repetitive Peak Off–State Voltage (TC = +110°C), VDRM

NTE5419 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V
RMS On–State Current (TC = +80°C, Conduction Angle of 180°), IT(RMS) . . . . . . . . . . . . . . . . . . 10A
Peak Surge (Non–Repetitive) On–State Current (One Cycle at 50 or 60Hz), ITSM . . . . . . . . . . 100A
Peak Gate–Trigger Current (3μs Max), IGTM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1A
Peak Gate–Power Dissipation (IGT ≤ IGTM), PGM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16W
Average Gate Power Dissipation, PG(AV) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mW
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –40° to +110°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –40° to +150°C
Typical Thermal Resistance, Junction–to–Case, RthJC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5°C/W
