Appearance: Used, dirty & worn
Functionality: Not Working

Description:
============

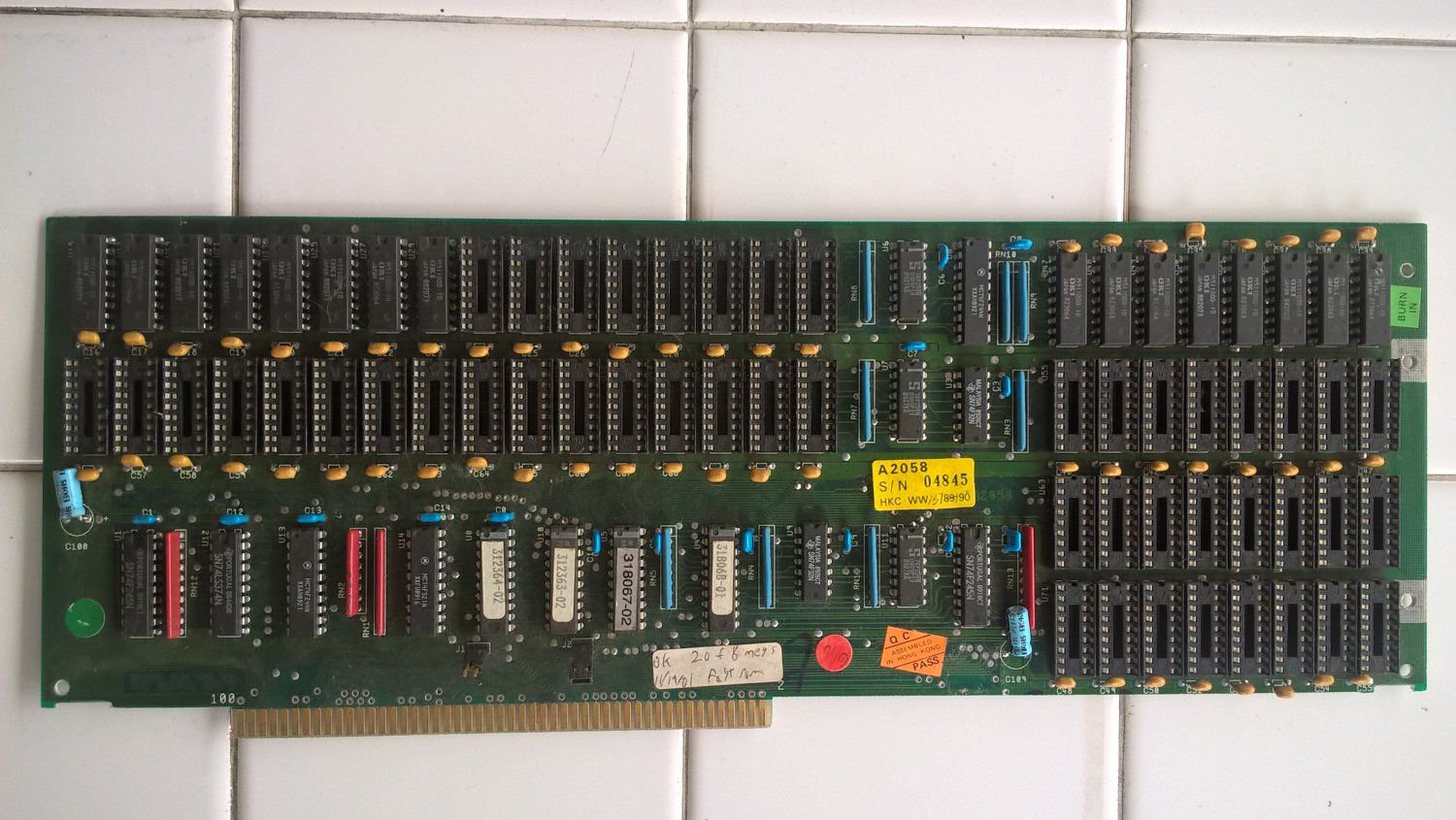

Similar to pictured, an A2058 Memory (RAM) card for Zorro-II equipped Amiga computers. 2MB installed and upgradeable to 8MB. Includes just the pictured board – no other accessories are available. Software is available at http://amiga.resource.cx/exp/a2058. Board displays an error – sold as-is.

Warranty and Returns:
=====================
This product is being sold AS-IS without any warranty. Returns are not accepted. To ensure that this is the right product for your needs, we’re happy to answer any questions.

Shipping:
=========
- Other shipping methods are available – contact us for details.
- Combined shipping is available for most items – contact us for details.
- Local pickup is also available at no cost.

About Us:
=========
The Computer Preservation Group is dedicated to the preservation of historical computers. To help fund ongoing operations, select items are made available. To learn more, please visit our website: www.computerpreservation.com. Thank you for your support!

Stock#:C20493.GO#.1


Details from http://amiga.resource.cx/exp/a2058:

Company
Commodore, USA
Date
1986
Amiga
A2000, A3000, A4000

Interface
Zorro II

Autoconfig ID
514 / 10

RAM expansion card ◾64 DIP sockets accept 8 MB RAM
◾2 MB RAM preinstalled
◾supports only 2, 4 or 8 MB configurations, it cannot be set to 6 MB
◾accepts 1M×1 DIPs only, 120 ns or faster
◾no waitstates
jumper settings
J1
ON
ON
OFF
OFF J2
ON
OFF
ON
OFF
- 2 MB
- 4 MB (U16-U32 and U55-U62)
- diagnostic mode
- 8 MB

Notes
◾some revision 3 boards have 8 MB pre-installed from factory with DIP chips soldered in (no sockets)
