£112.59
Add to Cart

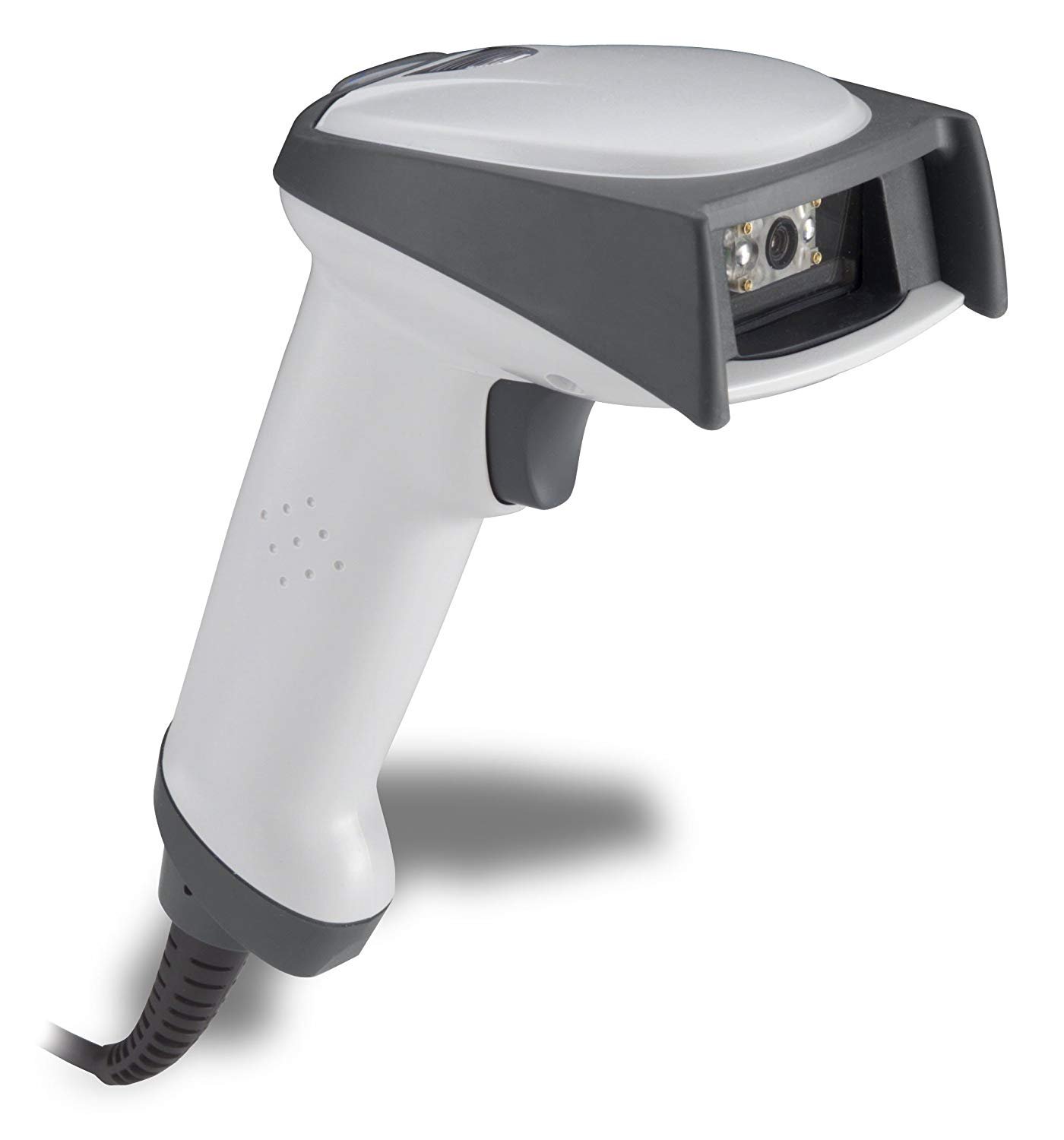

Honeywell 3800RSR050E Barcode Scanner Imager Including USB Cable.
More than 10 available
Details
Shipping: United Kingdom: £8.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Performance
Illumination: 630 NM Visible Red LED
Receiving Device: 3648 element linear imager
Reading Distance: From 1 in. (2.5 cm) to 24 in. (61 cm) on medium density codes
Reading Width: 7.5 mil code: 7 in. (18 cm) from nose, 6.6 in. (17 cm) wide
13 mil code: 16.5 in. (42 cm) from nose, 10 in. (25 cm) wide
Resolution: 5 mil. at 5 in. (13 cm) distance
Skew Angle: +-65
Pitch Angle: +-65
Horizontal Velocity: 2 in. (5 cm) per second
Minimum SymbolContrast: 20%
Scan Rate: Up to 270 scans per second
Decode Rate: 270 decodes per second
Mechanical/Electrical
Dimensions
Length: 5.3 in. (13.5 cm)
Height: 6.2 in. (15.7 cm)
Width: 3.2 in. (8.1 cm)
Weight: 6.5 oz. (184.3 g)
Housing: UL 94V0 grade
Power Requirements: 4.5 - 12Vdc at scanner
Current Draw (Typical): Input Scanning Idle
5V 235mA 65mA
12V 127mA 45mA
Power Supply
Noise Rejection: Maximum 100mV peak to peak, 10 to 100Hz
Environmental
Temperature
Operating: +32F to +122F (0C to +50C)
Storage: -40F to 140F (-40C to +60C)
Humidity: 0 to 95%, non-condensing
Mechanical Shock: Operational after 50 drops from 6 ft. (1.8 m) to concrete
Ambient Illumination: 0 - 70,000 lux
ESD Protection: Functional after 15kV discharge
Vibration: Withstands 5G peak from 22 to 300Hz
Agency: FCC Class B, CE EMC Class B, CE Low Voltage Directive, IEC60825-1 LED Safety: Class 1, UL, cUL liste
Symbologies: Codabar, Code 3 of 9 including PARAF, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, Code 11, Code 93, Code 128, UPC, EAN/JAN, China Postal Code, RSS. 2005 Sunrise/GTIN compliant, and ISBT 128 Concatenation (requires a paid license)
Interfaces: All popular PCs and terminals via keyboard wedge, keyboard replacement/direct connect, USB, TTL level RS-232, wand emulation mode, TTL level Serial Wedge, and IBM 46XX retail terminals
Illumination: 630 NM Visible Red LED
Receiving Device: 3648 element linear imager
Reading Distance: From 1 in. (2.5 cm) to 24 in. (61 cm) on medium density codes
Reading Width: 7.5 mil code: 7 in. (18 cm) from nose, 6.6 in. (17 cm) wide
13 mil code: 16.5 in. (42 cm) from nose, 10 in. (25 cm) wide
Resolution: 5 mil. at 5 in. (13 cm) distance
Skew Angle: +-65
Pitch Angle: +-65
Horizontal Velocity: 2 in. (5 cm) per second
Minimum SymbolContrast: 20%
Scan Rate: Up to 270 scans per second
Decode Rate: 270 decodes per second
Mechanical/Electrical
Dimensions
Length: 5.3 in. (13.5 cm)
Height: 6.2 in. (15.7 cm)
Width: 3.2 in. (8.1 cm)
Weight: 6.5 oz. (184.3 g)
Housing: UL 94V0 grade
Power Requirements: 4.5 - 12Vdc at scanner
Current Draw (Typical): Input Scanning Idle
5V 235mA 65mA
12V 127mA 45mA
Power Supply
Noise Rejection: Maximum 100mV peak to peak, 10 to 100Hz
Environmental
Temperature
Operating: +32F to +122F (0C to +50C)
Storage: -40F to 140F (-40C to +60C)
Humidity: 0 to 95%, non-condensing
Mechanical Shock: Operational after 50 drops from 6 ft. (1.8 m) to concrete
Ambient Illumination: 0 - 70,000 lux
ESD Protection: Functional after 15kV discharge
Vibration: Withstands 5G peak from 22 to 300Hz
Agency: FCC Class B, CE EMC Class B, CE Low Voltage Directive, IEC60825-1 LED Safety: Class 1, UL, cUL liste
Symbologies: Codabar, Code 3 of 9 including PARAF, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, Code 11, Code 93, Code 128, UPC, EAN/JAN, China Postal Code, RSS. 2005 Sunrise/GTIN compliant, and ISBT 128 Concatenation (requires a paid license)
Interfaces: All popular PCs and terminals via keyboard wedge, keyboard replacement/direct connect, USB, TTL level RS-232, wand emulation mode, TTL level Serial Wedge, and IBM 46XX retail terminals
