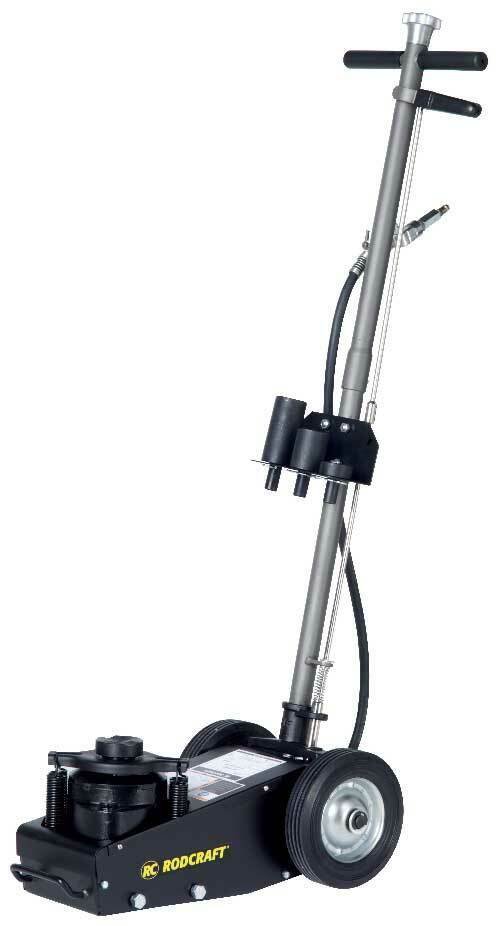

Rodcraft 20 ton hydraulic jack

- LHH22

Another in the range of Rodcraft hydraulic jacks. With many features and benefits for many industrial uses.

Please note, we usually sent from stock, otherwise sent direct from the manufacturer!! This should not delay your receipt of you goods.

Benefits
Universal: low clearance – large stroke - adapters (see below) & threaded piston prolongation
Fast and easy lifting – controlled by the valve on the hose: integrated pneumatically powered hydraulic pump & no pumping by hand
Maneuvering with ease, quiet and without scratching the floor: due to short construction and large rubber wheels and large standing surface & handle bar can be locked in 3 positions: 1. for parking in confined areas, 2. for moving and 3. for positioning under a vehicle
Powerful, robust and safe: large standing surface, one piece piston, with “ remote control ”, lifting valve is located on the end of the air hose & descent valve knob on the handle bar
Transportable and practical: handle bar can be disassembled, compact construction, with carrying handle and adapters directly ready to hand, low air consumption (300 l/min) for connection with truck brake system (only 7-10 bar necessary)
Easy to maintain: oil refill plug accessible on top & piston is retracted by four, easy to reach springs
3+1 extension adapters / saddle plate
CE certified
Air supply pressure needs to be 7 - 10 bar, air consumption 300 l/min
According to EN 292

Features
Short and compact, very easy to manoeuvre
Overload control and safety valve against undesired descent
Piston is retracted by 4 springs
Piston includes integrated threaded extension
Front handle for easier carrying
Including adapters: broad saddle with diameter 68 mm, height 20 mm. Diameter 48 mm, heights 20/60/100 mm
Air supply pressure needs to be 7 - 10 bar
Air consumption 300 l/min.
According to EN 292


Model LHH22
Part number 8951084201
Net weight 49 kg
Dimension A 210 mm
Dimension B 205 mm
Dimension C 320 mm
Dimension D 330 mm
Dimension E -
Dimension F 325 mm
Dimension G 1200 mm
Capacity 20 ton(s)
Dimension D+E 430 mm
Dimension P 50 mm
Wheel type Rubber
We are the main UK distributor for Rodcraft!

Please note we always try to send the items out on the next working day, so you receive the items quickly!

List price £1314.79 - Our price £679.95 plus Carriage!
