Description :

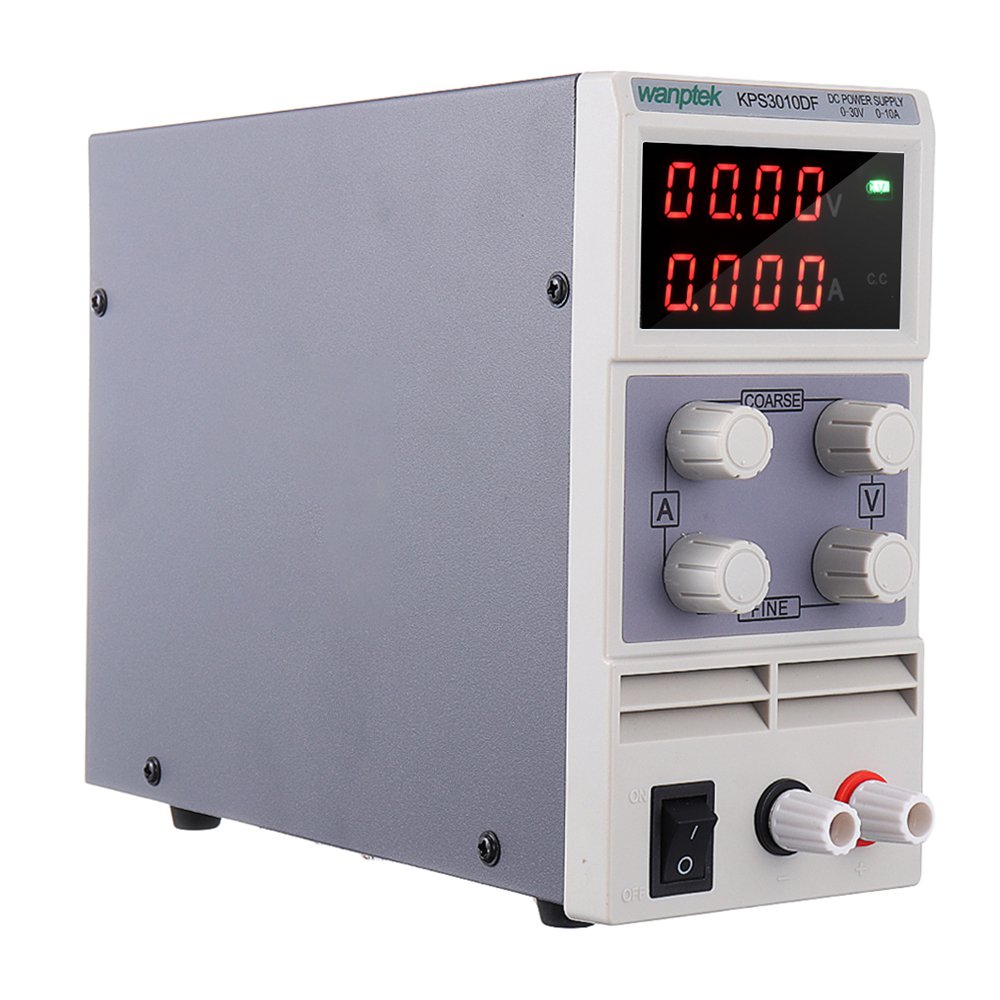

KPS series 4 Digits Display LED 0-30V Mini DC Power Supply- KPS series is a single set of output, high precision double display switch dc power supply.
- Machines have complete operating protection function, with high performance,low ripple, high stability , light weight and small volume etc.
- Current limiting protection,can make KPS power supply and load against accidental damage.
- KPS series power supply with low temperature control circuit, a cooling fan noise is low.( turn on the switch , the fan can not work .the fan needs to work until the temperature ) Features :

1, have complete operating protection function2, highly efficient, low ripple, small volume, light weight3, double display voltage, current, and high precision4, voltage stabilization, current limiting, simple operation5, dual voltage input and convenient choice6, temperature control fan heat dissipation, low noise7, Double potentiometer more precise adjustment Specification :

BrandWanptekModelKPS3010DFInput voltageAC 220V/110V±10%  50Hz/60Hz(Switchable)Output voltage0 - 30VOutput current0 - 10AOutput TypeSingleVoltage resolution0.01VCurrent resolution0.001APower effectCV≤1%+10mVEffect of loadCV≤1%+10mVRipple and noiseVp-p≤1%Voltage display precision±1%+1digitsCurrent display precision±1%+2digitsNet/gross Weight (KG)2.0Volume (mm)81WX165HX220LOperating environment(-10-45) Rh<90%  Package Includes :

1 x  DC Power Supply1 x  User Manual1 x  Test line2 x Test line clamp2 x Probe1 x Power line(EU/US) Details Pictures :
