Description:

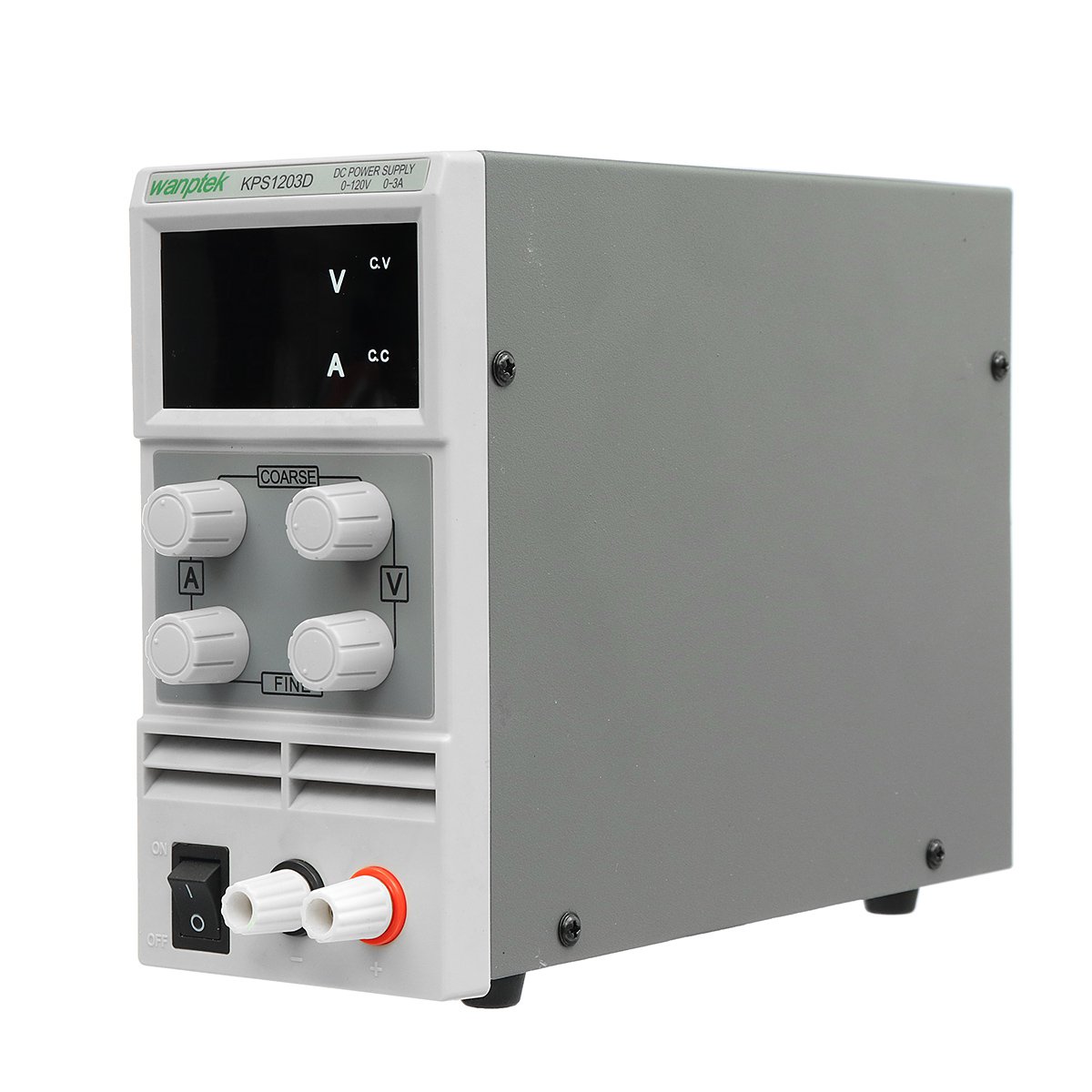

KPS series DC power supply is a single-group output, high-precision dual display switching DC power supply. The machine has complete operating protection features, high performance, low ripple, high stability and small size. Current limiting protection can protect KPS power supplies and loads from accidental damage. KPS series power supply with temperature control circuit, intelligent cooling noise.

 Specifications: Model: KPS1203DInput voltage: AC 110V~220V / 220V, 50/60HzOutput voltage: 0~120V continuously adjustableOutput current: 0 - 3A continuously adjustableVoltage resolution: 0.1/1VCurrent resolution: 0.01APower effect: CV1%+10mVEffect of load: CV1%+10mVRipple and noise: Vpp≤1%Voltage display precision: 1%+1digitsDisplay resolution: 0.1V / 0.01ACurrent display precision: ±1%+2digitsWorking temperature: (-10 ~ 45) °CStorage temperature: (-20 ~ 60) °CRelative humidity: 90% (40±5°C)Net weight: 1.5KgGross weight: 1.8KgMachine size (mm): 81 (width) × 165 (high) × 220 (long)Packing size (mm): 120 (width) × 205 (high) × 290 (long)

Style Note:

#01: 110V-220V
#02: 220V
  Features: - High efficiency, power enough- Low ripple, small size, light weight- Voltage and current dual LED display, high precision- Voltage regulation, current limiting, easy operation- Dual voltage input, convenient selection- Temperature controlled fan cooling, low noise, long life Application area:1. Production line test2. Electrical maintenance3. Product aging4. Battery charging4. Laboratory, research teaching6. All other situations where DC power supply is needed  Package Includes: 1 x DC Power Supply1 x Power Cord (AU Plug)1 x Output Line1 x Instruction Manual    More Details:
