Description:

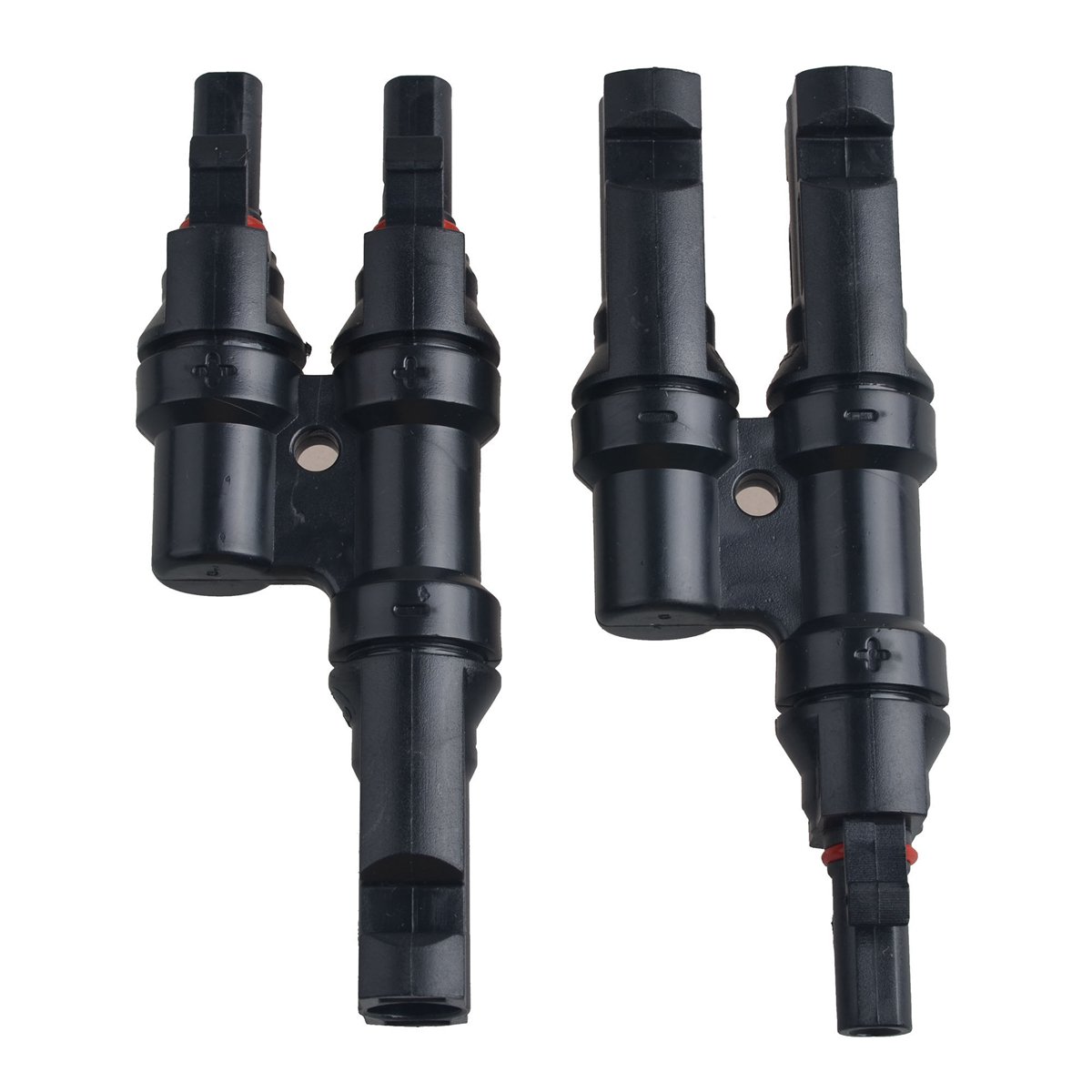

* The solar T-type three-way connector is used for the solar panel fast parallel connector. The shell is made of high quality PPO material. It has UV resistance, cold resistance, high temperature resistance, fire resistance and UV resistance. It can be used outdoors for more than 25 years. The unique design allows water resistance to be above IP67 (slowly underwater). It can be used for docking of component outlet connectors with different component manufacturers. Easy to install and easy to operate.

Specification:
NameMC4 T type three-way parallel connectorRated current50A(2-4mm2)Rated voltage1000VDCTest voltage6000v (50HZ1min)Overvoltage type/pollution indexCATIII/2Connector contact resistance0.5mConnector conductor materialcopper, silver platedConnector insulation materialPPOProtection levelIP67Flame retardant gradeUL94-V0Safe typeIIInsertion force50NOperating temperature range-40°C~ +90°C
Features:
-- High current carrying-- Automatic lock provides secure docking
-- Easy and fast assembly, outdoor operation-- Repeated insertion and removal many times-- Compatible with MC4, used for parallel connection between photovoltaic modules to realize parallel connection of two inputs and one output
Package Included:
1 x T-Type Three-Way MC4 Solar Connector 2-in-1 Parallel Connector
