Specification:
Quota voltage: 1.5V AC (Max, sine wave)
Quota power: 0.2mW (Max, sine wave)
Working frequency: 500Hz~2kHz
Service temperature: 0-60 C
Use humidity: below 95% RH (non-condensation)
Hysteretic hysteresis: less than 2% RH
Response time: hygroscopicity, <20S; dehumidification <40S
Stability: <1%RH/year
Precision of humidity measurement: <5%RH
relative humidity
Conditions: AT25 C 1kHz 1V AC (sinusoidal wave)
Humidity: 60% RH
Central value: 31 KΩ
Impedance range: 19.8-50.2 KΩ
Precision of humidity measurement: +5%RH

Features:
- High Precision Surveying and Monitoring
- Wide measurement limit
- Stable performance
- Extra Long Life

Description:

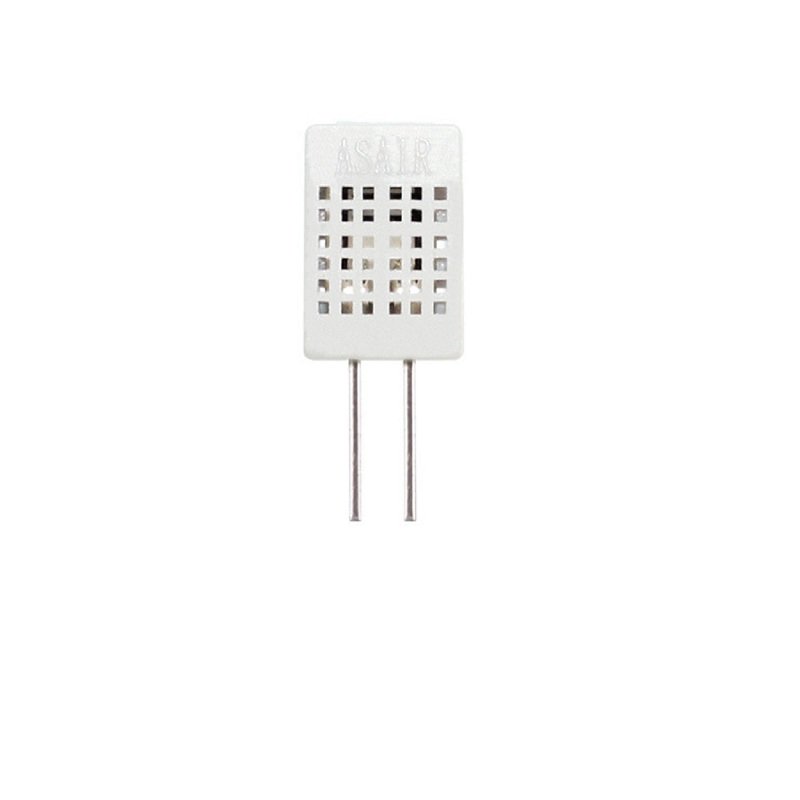

HR202L chip humidity sensitive resistor is a new type of humidity sensitive element using organic macromolecule material. It has a wide range of humidity sensitivity and stable performance for a long time. It can be widely used in storage, carriage, indoor air quality control, building automation, medical treatment, industrial control system and scientific research fields.

Package Includes:
1 X HR202L Temperature and Humidity Sensor
