FOR YOUR HOME OR BUSINESS - HIGH QUALITY MPEG-4 RECORDING COMPRESSION! PROTECT YOUR COMPANY FROM EMPLOYEE THEFT, FRAUDULENT WORKMANS COMP CLAIMS, SLIP & FALL INCIDENTS, INVENTORY SHRINKAGE, ETC.

We also have cameras available. Contact us for free online CCTV security consultation of your premises. We will recommend the proper equipment for your requirements.

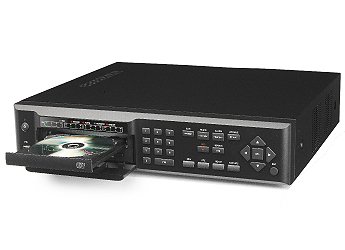

This digital video recorder will allow you to connect up to 16 cameras, and has motion detection, as well as allows you to connect to it via the internet, so you can view your home or business from anywhere in the world, via the internet!

Features:
MPEG-4 Compression.
Unbeatable recording picture quality and compression ratio that can save HDD consumption.
Best for network performance with 5~10 times smaller than MJPEG.

TRIPLEX operation enabling simultaneous recording, playback and transmission via network.

Reliable File System.
NaFS - Designed to prevent data loss or corruption in the event of a power failure.

Individual Channel Operation.
Individual channel configuration such as recording frame rate, quality, motion detection, DI/DO, recording schedule per channel.

Easy and Simple Interface.
Simple and easy operation based on instinctive graphic user interface.

Easy Scheduler.
Easy to schedule complicated weekly recording plans.

Motion Detection.
User can define motion detection zones for each camera with grids and its sensitivity per channel.

Easy software Upgrade.
Easy software upgrade via USB Flash drive.

Instant and convenience backup function.
Still-image and Video data exporting via USB Flash drive or Network.

Exclusive File Format Backup.
Export an exclusive format video which can be played via an exclusive player.

AVI Backup.
Export AVI file which can be played via Microsoft Media Player in any PC with MPEG-4 Decoder installed.

Various ways of Network access.
Various network accesses are available via Network client application software,
Web-viewer, Multi-site monitoring software, and Central management software.

Free Dynamic DNS.
Free Dynamic DNS on http://ns.standalone4ch.com provides easy and one-step registration.

Built-in Pan/Tilt/Zoom/Focus camera protocols over 30 models.

Automatic Video Input and Video loss detection.

Covert camera operation provides enhanced security.

Multi-Languages Operation menu.
Over 15 languages are available.

Various Video Output.
Composite video, VGA, S-VHS, Spot, Loop out

4channels audio recording.

Bi-directional audio.

Specifications:

ITEM 16 CHANNEL DVR
Video Input
Composite: 16CH,Composite 1.0Vp-p, 75 ohm
Signal Format: NTSC/PAL(Auto Detection)

Video Loss Alert: Yes

Output Main Monitor 1CH BNC, 1CH VGA: Selectable 1CH BNC, 1CH VGA: Selectable/ 1CH S-Video
Output Level Composite 1.0Vp-p+_0.2, 75 ohm
Signal Format: NTSC/PAL&VGA
Etc Output - 9/16CH Loop-out, 1CH Spot
Audio
Input & Output
4CH Line Input & 1CH Line Output

Audio Codec G.711
Alarm Sensor Input 4 9 16
Alarm Output
1
4 4
Recording Compression
MPEG-4
Muiti-Operation
Tricplex(Playback/Record/Network)


Frame Rate
Full - D1 704x480(NTSC) / 704x576(PAL)

Half-D1 - 704 x 240(NTSC) / 704 x 288(PAL
CIF 352 x 240(NTSC) / 352 x 288(PAL)
Recording Mode
Continuous/Schedule/Motion/Sensor/Manual

Motion Detection
Motion Detection Setup by Grid

Pre & Post Recording: Yes
Display Frame Rate NTSC: 30Fps /PAL: 25 Fps
Playback Multi-Decording 1 & 4 split screen 1 & 4, 9 split screen 1 & 4, 9,16 split screen
Search Mode Event, Time Line, Archive, Log
Storage Internal HDD interface Type EIDE / ATA 133
Max. Capacity of 1 HDD 1.0TB

Max. HDD Number 2

File System NaFS-Designed to prevent dataloss or corruption in the event of apower failure
Backup USB Flash Drive JPEG & AVI / Exclusive Video Format
CDRW JPEG & AVI / Exclusive Video Format
Network Video & Still Image
Serial Port Console: 1 RS-232C (9Pin D-SUB Connector)

Camera Control: 1 RS-485/422(4 Terminal Block)

Network
Dynamic IP & DDNS: Yes

Network Interface: 10/100 Base-T Ethernet (RJ-45)

Additional
Function DLS(Day Light Saving) : Yes

S/W Upgrade: USB Flash Drive

General Power Source DC +12V adapter AC 100~127V / 200~240V, 50-60Hz
Unit Weight(Gross Weight) 5.1Kgs(8.6Kgs) /11.2Lbs(18.9Lbs) 6Kgs(9.5Kgs) /13.2Lbs(20.9Lbs)
Unit Dimension(W x H x D) 432 x 358 x 93 mm /17 x 14.1 x 3.9inches

*Specifications are Subject to change without notice.
