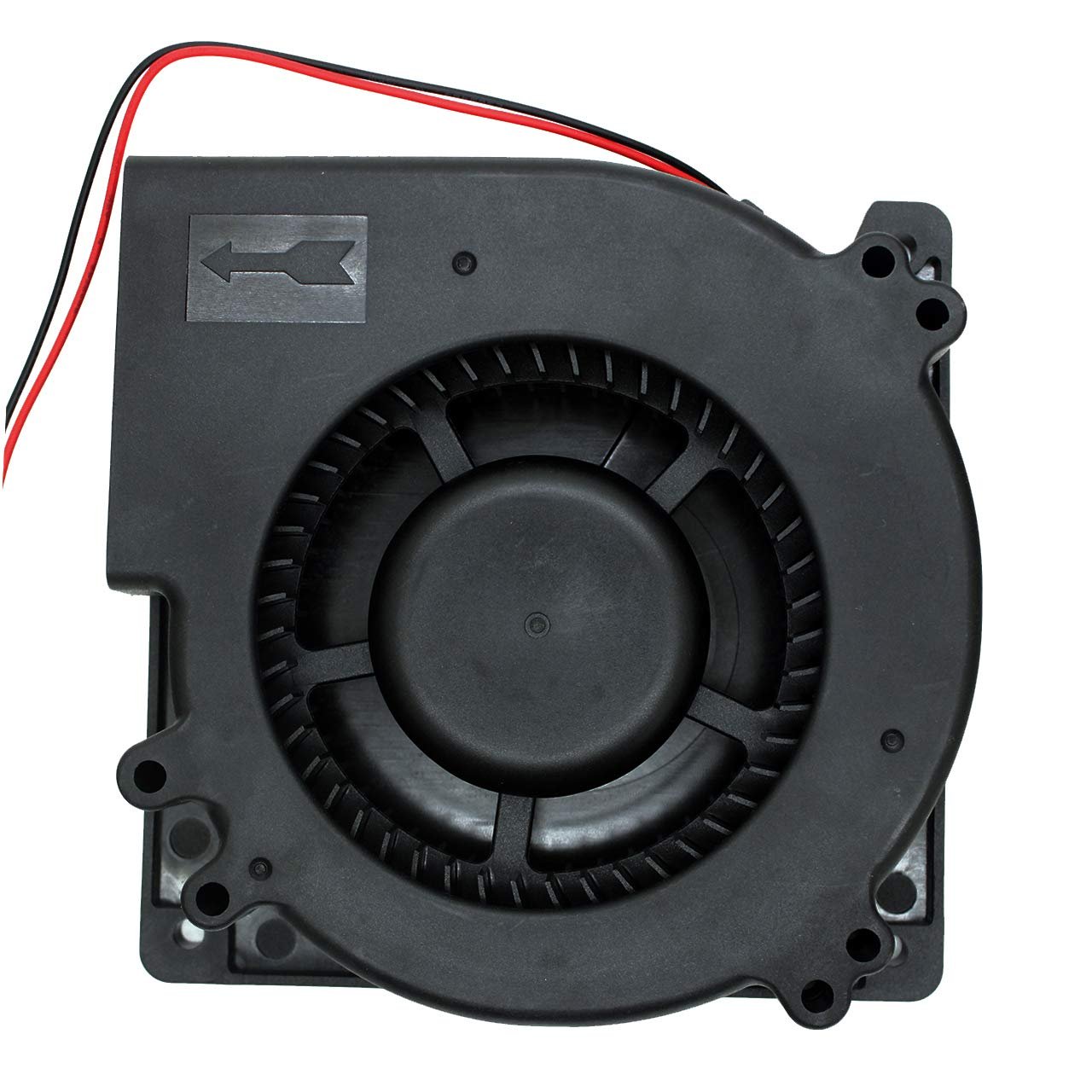

42.45CFM @2800RMP (max.) 61.3dB-A (max.)12V DC Voltage,0.95A Current Rated2-pin XH-2.5 Fan Connector with 20cm+/-0.5 (8 inches) Cable (Red + Positive, Black-Negative)120x120x32mm,Weight only 202g/pcs2 pcs Ball bearings With Long Fan Life Expectancy (Non-waterproof) Product Description UTUO Centrifugal Brushless Dual Ball Bearing Blower Fan is made for cooling and ventilating solution with long life expectancy. Dual Ball Bearings design, PBT+GF housing and blade ensures a wide operation temperature ranged from -10℃ to +70℃. Small size and Light weight but can generate a decent air flow output. RATED AND OPERATING CONDITLONS Rated voltage(VDC): 12V | Rated current(A): 0.95A | Rated input power(W): 11.4W | Rated Speed(RPM/Min): 2800±10％Startup voltage(VDC): 7V | Operating voltage(VDC): 7.0-14.0V | Operating temperature(℃): -10℃-+70℃ AIR FLOW-AIR PRESSURE CHARACTERISTIC Applicable conditions: Shall be applied in the state when the standard, environmental conditions and voltage are fixed. Max. Air Flow: 42.4CFM Max. Static Pressure: 41.10mm-H2OMax. Noise: 61.30 dB-A STRUCTURE AND FORM Bearing: Dual Ball Bearing | Structure: Cross flow fanHousing: PBT+GF30% | Blade: PBT+GF15%Dimension: 120x120x32mm | Screw Hole Spacing: 104.5 mm±0.5 | Weight: 202gConnector: XH2.5-2P | Cable Length: 20cm (8 inches) ELECTRICAL PROTECTION Locked Rotor Protection: Auto Power off after Locked at Rated Voltage for 1 sec. And Then Circuit Attempt to Restart in 2 to 6 Sec.Polarity Protection: Open Circuit when Vcc &GND are Exchanged Circuit Won't be burned within 5 sec. when Vcc &GND are exchanged.Insulation Resistance: At least 10MΩ at 500 VDC between Housing and Both Lead Wires.Electric Strength: Withstand 500 VAC 1 minute 1mA between Housing and Both Lead Wires Bearing Dual Ball Bearings Dual Ball Bearings Dual Ball Bearings Sleeve Bearing Dual Ball Bearings Dual Ball Bearings Input Voltage 12V DC 24V DC 90~270V AC 12V DC 12V DC 100~240V AC Size 120mm*120mm*32mm 120mm*120mm*32mm 120mm*120mm*32mm 120mm*120mm*32mm 120mm*120mm*32mm 120mm*120mm*32mm Plug Type 2 Pin 2 Pin Removable Connector 2 Pin Universal 5.5*2.1 mm Plug Universal 5.5*2.1 mm Plug Track Page Views WithAuctiva's Counter
