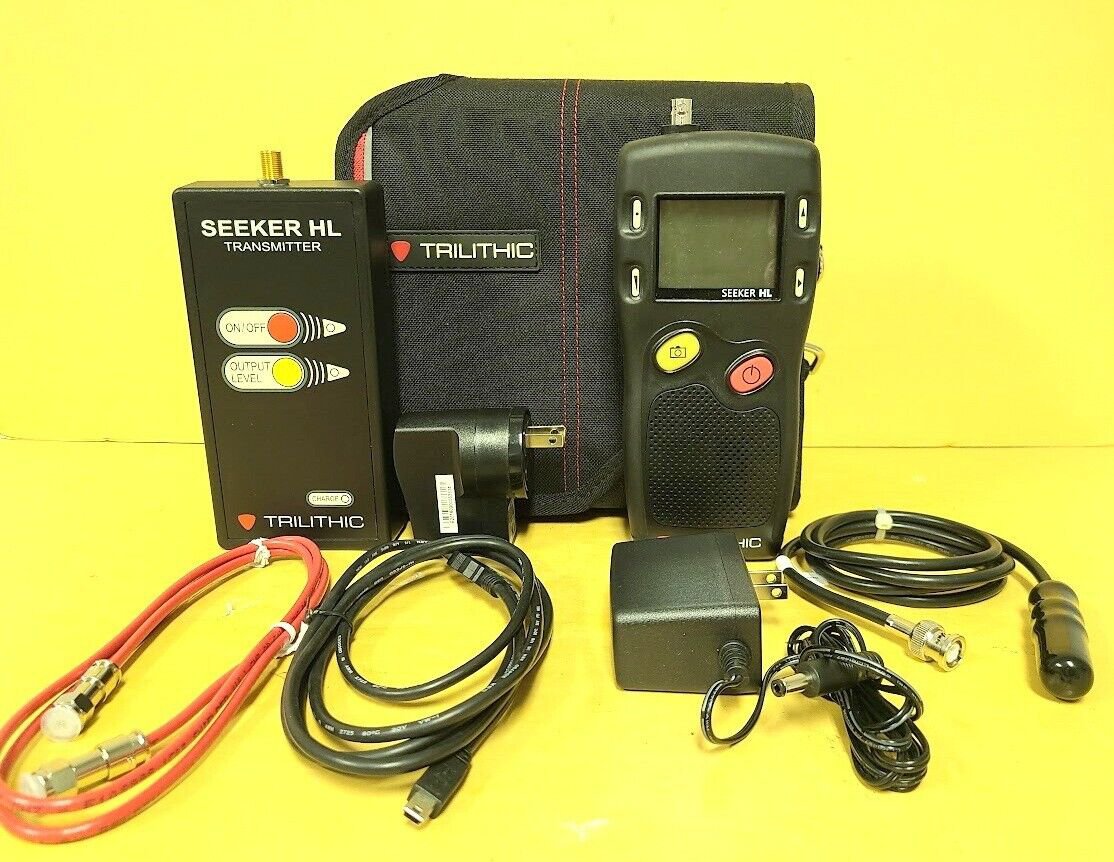

Trilithic SEEKER HL Transmitter Leakage Detector DSP & ONX Signal Level Meter

Specifications
Operation Specifications
Monitored
Frequencies
Low: 138 MHz
High: 757.5 MHz
Calibrated Level
Range 0.1 to 1000 μV/m @ 60 dBmV Transmit Level
Physical Specifications
Construction Plastic housing, with rubber overmold
Control Front panel rubber keypad
Display Dual numerical readout of detected low and high-frequency leakage within sensitivity
range
Speaker Tone is present if leakage amplitude exceeds squelch setting
Pitch is proportional to strength of leak
Dimensions
(H x W x D) 7.50 x 3.25 x 1.50 in (191 x 83 x 38 mm)
Weight 1.0 lbs (454 grams)
Available Interface Types
Antenna BNC Type connector with dual-band antenna
USB Mini-B Port for charging & configuration using Seeker Setup Software
Battery & Power Specifications10
Operating Time 8 hours plus, dependent on use
Charge Time 10 hours
Battery Single 2600 mAh @ 3.7V Li-Ion internal battery, factory replaceable
Power Adapter Input: 100 to 240 VAC ~ 50 to 60 Hz, 0.3A Max
Output: 5 VDC, 1.0A
Environmental Specifications
Storage &
Operating
Temperature
Storage: -40˚ to +70˚ C (-40˚ to 158˚ F)
Operating: -20˚ to +50˚ C (-4˚ to 122˚ F)
Power Adapter Input: 100 to 240 VAC ~ 50 to 60 Hz, 0.3A Max
Output: 5 VDC, 1.0A
Environmental Specifications
Storage &
Operating
Temperature
Storage: -10˚ to +70˚ C (-40˚ to 158˚ F)
Operating: -20˚ to +50˚ C (-4˚ to 122˚ F)
