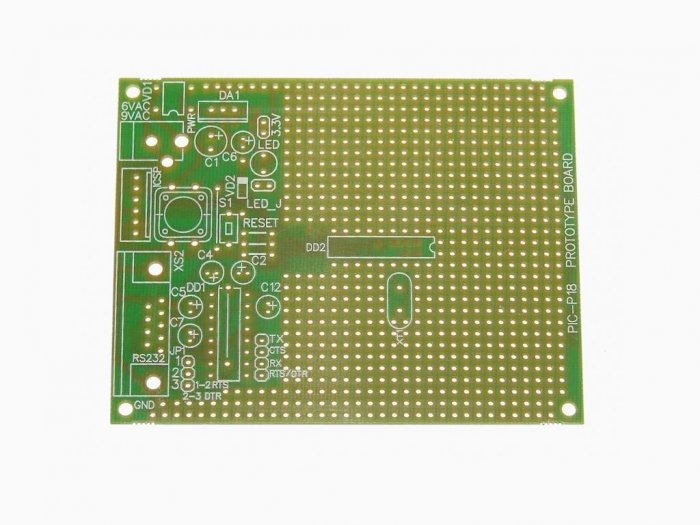

PIC Microchip PIC-P18 prototype board

With this board you can develop and prototype with any of Microchip's 18 pin PIC microcontrollers. The RS232 driver on board allows easy connection with PC or other embedded hardware. The board have user button and status LED. The bridge rectifire allow this board to be powered with both AC and DC power supply adapters. PIC-P18 supports both 3.3V low power and normal 5V operation.

FEATURES:

* ICSP/ICD connector for programming with any PIC programmer or debugging (EXTRA-PIC, JDM PIC, ICD2, PICkit2 or other),
* RS232 Tx, Rx interface with MAX232 IC
* DIL-18 microcontroller socket
* Quartz crystall 20Mhz
* LED to RB3 through jumper
* user Button on RB2 port
* Reset button
* Power plug-in jack
* selectable +3.3V / +5V power supply voltage regulator
* Gird 100 mils (2,54mm)
* GND bus
* Vcc bus
* Four mounting holes 3 mm (0,13")
* FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print .
* Dimensions 100x80 mm (3,9x3,15")

Documentation:
* Schem: http://mcuboards.org.ua/document/PIC_P18/PIC_P18_Schem.pdf
* PCB placement: http://mcuboards.org.ua/document/PIC_P18/PIC-P18_placement.pdf
