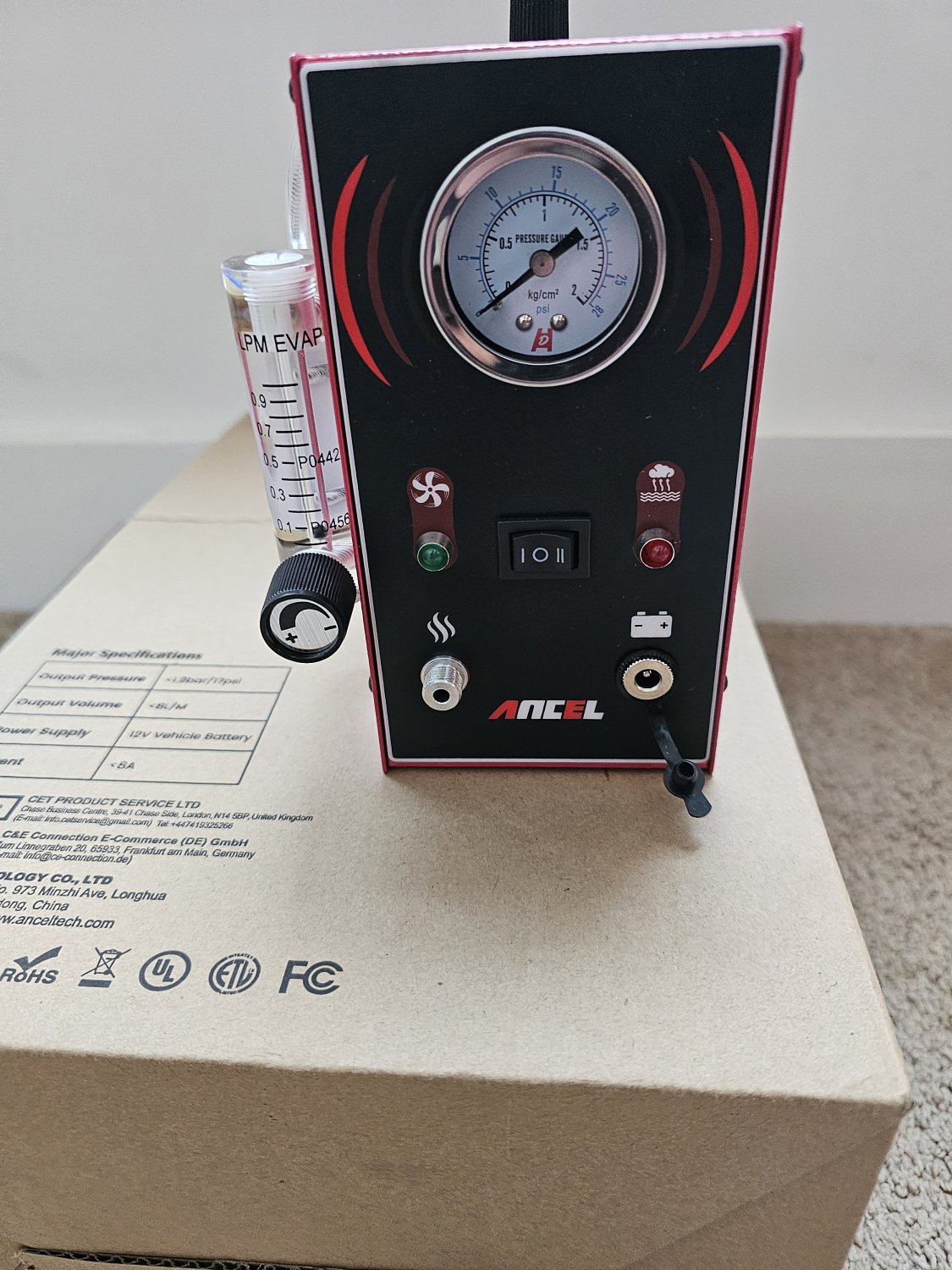

ANCEL S300 Automotive Smoke Machine with Built-in Air Pump and Pressure Gauge Flow Gauge,Dual Mode Evap Smoke Leak Tester,Auto Smoke Machine Leak Detector Tools Kit

ANCEL S300 Main Feactures

【✅Built-In Air Pump】The ANCEL S300 EVAP smoke machine is a fantastic tool for diagnosing EVAP leaks in vehicles.The built-in compressor is a fantastic feature that sets this leak detector apart from others on the market.so you don't have to drag around a shop air hose

【✅Adjustable Flow Gauge】+【✅Precised Pressure Gauge】Thanks to the adjustable air flowmeter you can control the amount of smoke being produced. ANCEL S300 automotive smoke tester also includes a pressure gauge that shows the pressure in the fuel system, also allowing you toaccurately diagnose problems.

【✅Air Mode】+【✅Smoke Mode】ANCEL S300 smoke machine for cars has a dual mode design(air mode and smoke mode),so these enable you to detect leaks precisely and fastly.Auto smoke tester also supports pressure decay test, identifying tiny leaks by applying specific pressure and monitoring the gauge, especially useful for hard-to-spot leaks.

【✅Intelligent Protector】Auto smoke machine leak detector has an intelligent protection device that automatically cuts off power if the operating temperature exceeds the limit to ensure the safety of the operator and the smoke machine. The smoke tester uses baby oil to produce harmless smoke and is ideal for leak detection in all vehicles.

【✅Detect Every Type of Leak】The S300 automotive smoke leak detector is able to pinpoint intake, exhaust, and other EVAP leaks in minutes. The ANCEL S300 is the most versatile smoke machine on the market, providing you with the tools you need to efficiently detect and repair leaks in automotive systems. Essential tool for diyers and shop repair.

How to do Leakage test ?

1. Fill 20ml baby oil to the detector for the first time. Open the engine cover, and hang the detector in the cover.
2. Disconnect the pipe that needs to be connected with detector.
3. Connect detector with DC12V battery, turn on the power switch, and the detector starts to work

4. In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.

How to do leakage test？
1. Turn OFF the ignition of the vehicle.
LEAK TEST OF VEHICLE SYSTEMS REQUIRES THE ENGINE TO BE OFF
2.Dismantle the air filter and the throttle connections.
3.Clean the inner wall of the intake opening to avoid sharp objects and put the Universal Intake
Adapter into the opening
4.Connect the Power Cord to 12V vehicle battery.
5.Now the Power LED would be ON, if else check the power supply.
6.Introduce the smoke nozzle into the system via the Adapter Cone
7.Press Air Control Switch, wait for 30 seconds until the system is pressurized, and check the
Pressure Gauge & Flow Meter reading for leak status, if the unit is equipped with Pressure Gauge & Flow Meter
8.Press Smoke Control Switch, .unplug and Plug back the smoke nozzle back into the Cone Adapter when there’s obvious smoke coming out of the smoke nozzle
9.The system will be ready for leak check in 2 minutes. Use a bright light torch or working lamp to assist
10.After test, press Smoke Control Switch again to stop the unit from generating smoke and
press Air Control Switch to stop generating pressurized air
11.Collect the Smoke Hose and the Power Cord with the Velcro Straps for storage. Hang the unit or make it stand in UPRIGHT position only. Do NOT lay it down.

Caution:

1.When you use this Ancel S300 Car Smoke Leak Detector for the first time, fill with 10-20ml oil.Please be careful NOT to beyond this range.

2.The testing liquid : both liquid paraffin and baby oil are OK.

3.Fresh oil can be filled with only when the smoke gets thin, and it can't be filled over 20ml each time.

4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.

5. During the process of leak detection, please keep away from smoke-sensitive parts.

6. Do NOT run the detector over 8 minutes continuously. It needs interval rest.

7. The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.

8.The round part of this detector has temperature, please be careful to avoid burns.

9. If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.



Smoke Oil Choose

The equipment is compatible with mineral oil based baby oil like Johnson & Johnson Pink bottle. Pure #5 white oil is the best choice if available.

【
