Moen Canada MISO 8 Power Supply 4 Effect Pedals 110V/240V Voltage Power Supply

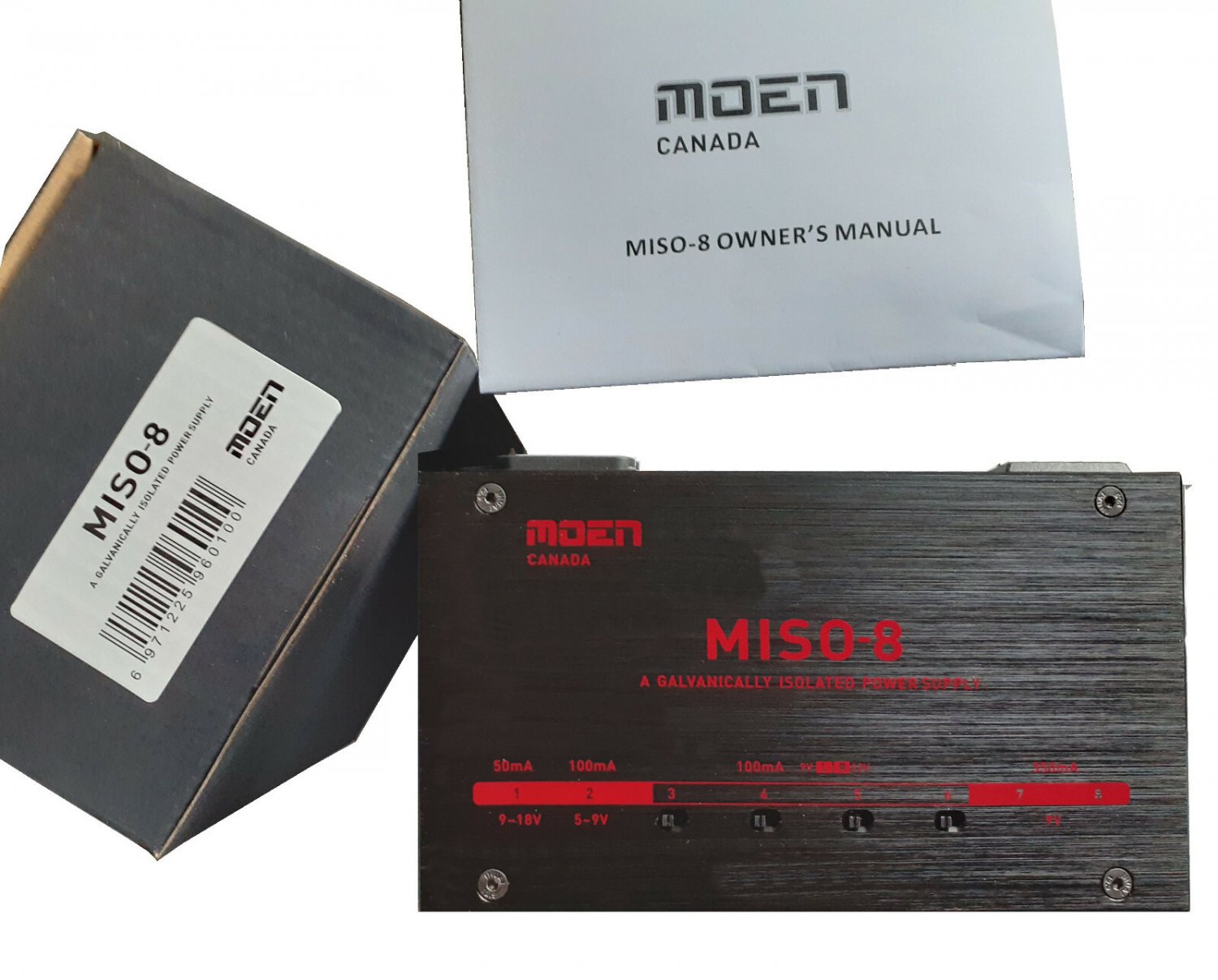

Moen Canada MISO 8 Power Supply.Miso 8 is an Eight Output Effect Pedal Power Supply designed with a high efficiency transformer. Each output is fully isolated, regulated and filtered,with over voltage protection. The all aluminum anodized enclosure dissipates heat rapidly and keeps components cool. Equipped with a voltage select switch, allows this power supply to work properly anywhere in the world. The Moen MISO 8 FX Power Supply powers, 9V, 12V & 18V effects pedals. While there are 2 adjustable outputs (9V-18V & 5V-9V) and 4 select-able outputs (9V or 12V), 9V'power is available across all outputs to work with most every manufacturer's effects pedals on the market.9V power options:Outputs 1 - 6; An effects pedals that has the option of being powered by a 9V battery requires less than 70mA and can be powered by any outputs 1-6 set to 9V.Outputs 7 - 8; Outputs 7 and 8 are designed for the higher current 9V effects pedals and switchers out now on the market. Or a Daisy chain cable can be used to power more than one 9V pedal for these outputs depending on each pedals current limitations .12V power options:Outputs: 3-6; When switched to 12V outputs 3,4,5,6 are designed to accept BOSS ACA type pedals and some digital modeling pedals.18V power option;Output 1; Begins at 9V and can be adjusted and up to 18V for pedals that require 18V.Low Battery Simulation option:Output 2; Can be adjusted from 9V down to 5V to be used to simulate a low battery which comes in handy if you have older transistor based distortion and fuzz pedalsWhat's Included:• Moen Canada MISO 8 Power Supply• AC Input cord• 2 7.9” [20cm] Line 6 Converter Cables• 2 19.7” [50 cm] Negative Center Output Cables• 6 27.5” [70 cm] Negative Center Output Cables• User's Manual & Warranty cardOUTPUT: - All DC Outputs are regulated- Over current protection on each output Output DC Voltage Current 1 9-18V 50mA 2 5-9V 100mA 3-5 9.6V/12.4V 100mA/50mA 7-8 9V 350mAFeatures:• Detachable ACpower cord.• 150W AC output outlet.• Input AC voltage select switch 110/220V for international use• All Outputs Isolated, Filtered with Over-voltage Protection• Select-able input (100 -240V)• 1 Auxiliary AC output• Transformer based design with separate grounds for true isolation!• Adjustable and select-able output voltages 5V -18V. 9Volts are available on all 8 DC outputs• 3 customer threaded mounting power supply mounting holes. (mounting screws not supplied.)• Size 6" x 3.5" x 1 3/4" (*NOTE Please select the power supply's AC Switch to your country's power requirement of 110V or 240V before plugging the power supply to a wall outlet, failure to do so can result in permanent damage to the power supply and not covered by warranty.)No Duty to Canada and USA FAST 'N FREE USA ShippingShips from Canada6971225960100
