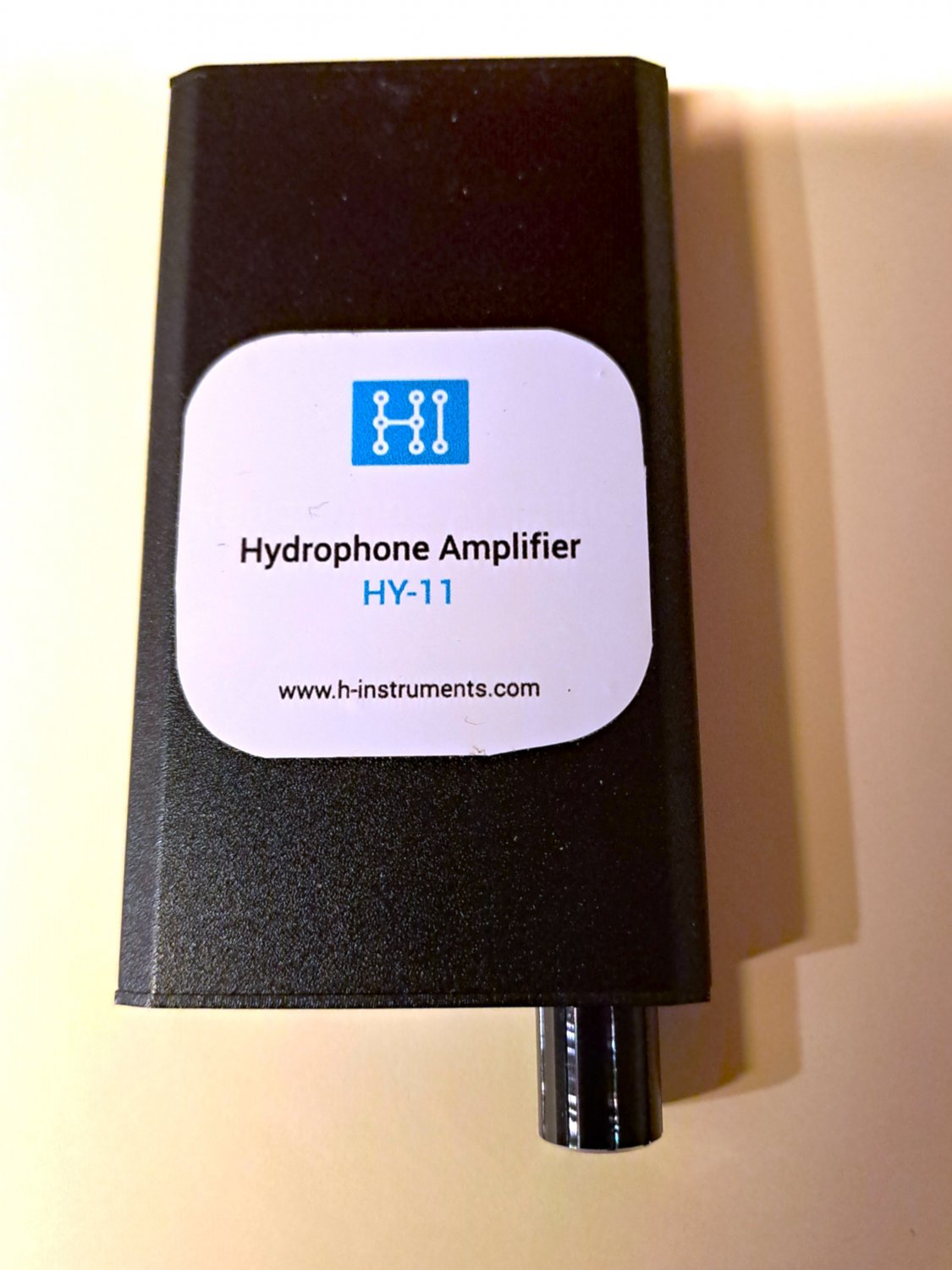

Professional Hydrophone Amplifier HY-11

HY-11 is a Professional Hydrophone Amplifier.

A high quality headphone amplifier with a built in high impedance and high gain pre-amplifier for optimum use with with high impedance hydrophones.

You only need a Hydrophone and a headphone with 3.5mm phone plug
See more on : www.h-instruments.com

Features:

Portable, powerful and easy to use.
USB charging
Amplifier can be used for more than 8 Hours per charging
High input impedance preamplifier for Piezo hydrophone application
Can be used a preamplifier for a power amplifier

Application;

Mammal - whale - Dolphin sound listening/recording
Detect marine mammals for conservation & research
Environmental science & research
High frequency underwater communication, we can tune the piezo to specific frequency on request! Contact to us for more info!
Geophone
Kayaking
Education
See more on : www.h-instruments.com

Specification:

Color: Black
Material: Steel
Model: HY-11
Size: 97x60x15mm
Input/Output Port: 3.5mm Studio Input
Lithium Battery Capacity: 2000mAh included
Working Time: More Than 8 Hours
Amp Internal Voltage: 8.3V/1A
Output Power: 40mW @ 16Ω
Adapted Headphone Impedance: 16-150Ω
Low noise SNR:>100dB
THD+N: 0.0003%
Input impedance >= 4 Mohm
Pre Amplifier gain 26dB (20x)

Connection of a hydrophone to the amplifier input:



Application:

Mammal/whale sound listening/recording
Detect marine mammals for conservation & research
Environmental science & research
Kayaking
Education
Whale watching
Eco tourism
Climate research
Fish farming
Pool leakage detection

Included:

Hydrophone amplifier
USB cable for charging
Headphone and Hydrophone NOT included!
