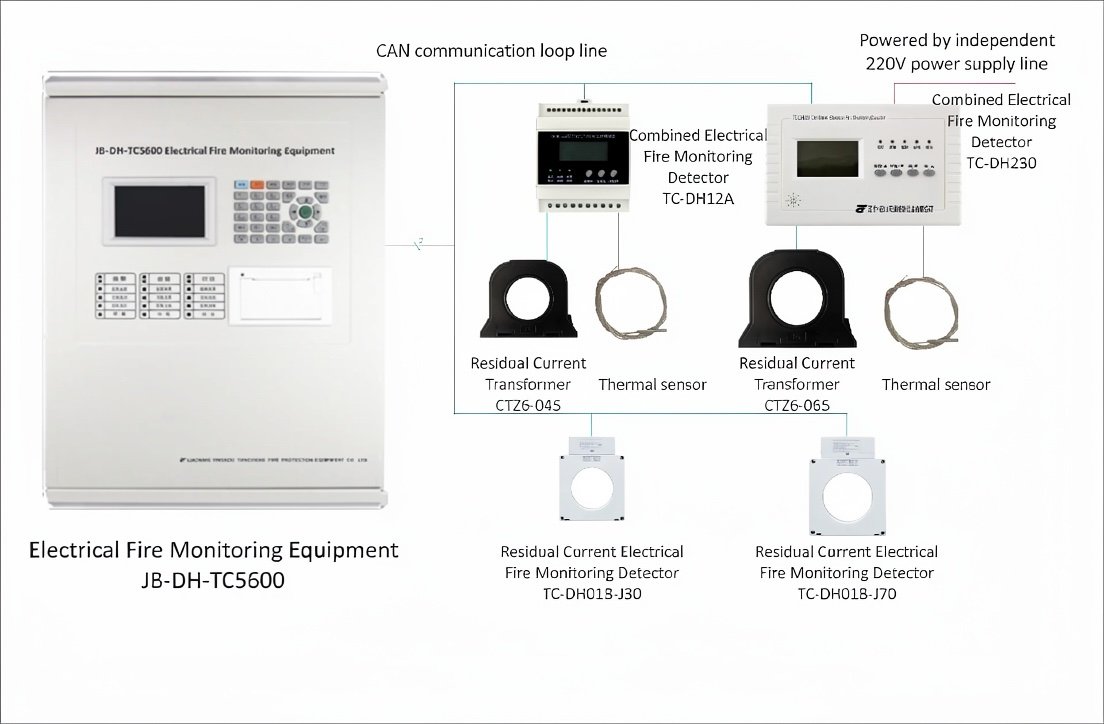

TC-DH01B-30 should be used with JB-DH-TC5600 to builds up electrical fire monitoring system. The detector can realize the function of leakage test, temperature test and output controlling by connecting with JB-DH-TC5600 electrical fire monitoring.
It can also connect with many other kinds of residual current transformers to realize stable and reliable operation.
Electrical fire monitoring system can effectively prevent electrical fire and reduce losses.

How to wire and encode the residual current detector? Watch video guidance at https://www.youtube.com/watch?v=XA14sTuAxKc
Features：
1. Connect with monitoring devices through nonpolar two-line loop to realize the function of communication and power supply.
2. The addressable code is electrical code, which can be programmed by electrical programmer. It is convenient and reliable for engineering commission.
3. The operating situation is monitored by the microprocessor. The microproccessor will transmit the mode status of normality or alarming to monitoring devices.
Specification:
1. Operationg Voltage: Pulse voltage of circuit loop : loop 24V, available range 16~30V
2. Operating current: standby current
