MAX3232 RS232 TTL Convertor, Adapter Kit for AVR,PIC,GPS 4.6 5 ratings

MAX3232 RS232 TTL Convertor, Adapter Kit for AVR,PIC,GPS

Only 1 available, 52 sold

Details

Shipping: United Kingdom: £7.00 (more destinations)

Condition: Brand new

*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.


RS232 to 3V TTL Signal Converter/Adapter Kit
Not Assembled
Come With True MAX3232 Chip
Works with GPS unit, Microchip PICs, Basic Stamps ... ...

6-pin Header layout:

6-pin__Label__Description

1_____V5_____Power Supply +5V DC
2_____RX_____Receive Data (RxD, RD)
3_____TX_____Transmit Data (TxD, TD)
4_____GND____Signal Ground
5_____R/DT___Request To Send (RTS) or Data Terminal Ready (DTR)
6_____C/DS___Clear To Send (CTS) or Data Set Ready (DSR)

Features:
* Come with a true MAX3232 level conversion ship
* RS-232 Bus-Pin ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM)
* Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards
* Operates With 3V to 5.5V VCC Supply
* Operates Up To 250 kbit/s
* Two Drivers and Two Receivers
* Low Supply Current . . . 300 uA Typical
* Five capacitors enclosed noise filtering
* Accepts 5-V Logic Input With 3.3-V Supply
* Configurable handshaking signal for RTS/CTS and DST /DTR
* Works with computer RS232 serial port or USB to serial adapter
* Need a DB9 straight through M/F (Male/Female) serial cable link to the computer RS232 serial port

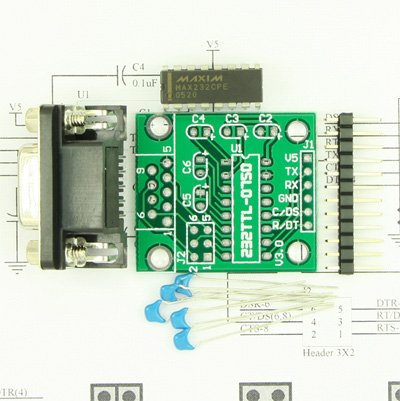

* High quality double sided printed circuit board with silk-screen and two mounting holes
* Small and compact in size 1.25 x 1.375 inches
* Directly plug in the breadboard

Applications:
* Set your Real Time Clock project via RS-232
* Read values and send them to the PC
* Turn your PC into a thermometer or voltmeter using Visual Basic or other software.
* Control a motor, lights, sensors or what ever with your PC.
* As a microcontroller bootloader interface
