£258.21
Add to Cart

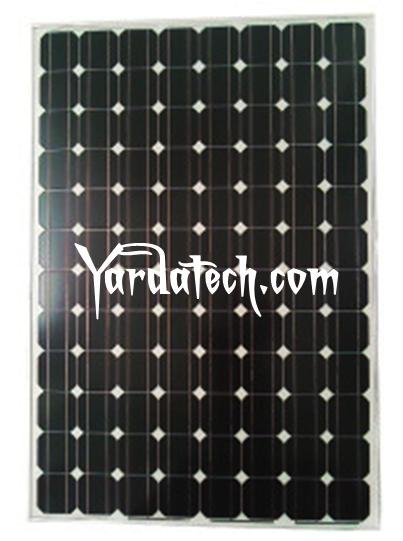

Solar Panel 75W
More than 10 available
Details
Shipping: United Kingdom: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
ELECTRICAL DATA
-------------------------------------------------------
Module Type ------------------- SL080M-12
Nominal Peak Power(Wp) ---- 75W
Nominal Voltage(Vmp) ------- 17.2V
Nominal Current(Imp) --------4.36A
Open Circuit Voltage(Voc) --- 21.6V
Short Circuit Voltage(Isc) ----4.80A
Module Efficiency --------------11.7%
Operating Temperature ---- -40 to +85C
Maximum System Voltage ---1000V DC
MECHANICAL DATA
-------------------------------------------------------
Solar Cell --- 36 Mono-crystalline 125 x 125mm
Frame ------- Anodized aluminum
Weight ------ 8kg
Dimension -- 1196 x 534 x 35mm
TEMPERATURE COEFFICIENTS
-------------------------------------------------------
Nominal Operating Cell Temp.(NOCT) --- 45+/-2 C
Voltage Temp. Coefficient(Voc) ---------- -0.36%/C
Current Temp. Coefficient(Isc) ----------- +0.033%/C
Power Temp. Coefficient(Pmpp) --------- -0.44%/C
Minimum Power Tolerance ---------------- +/-5%
-------------------------------------------------------
Module Type ------------------- SL080M-12
Nominal Peak Power(Wp) ---- 75W
Nominal Voltage(Vmp) ------- 17.2V
Nominal Current(Imp) --------4.36A
Open Circuit Voltage(Voc) --- 21.6V
Short Circuit Voltage(Isc) ----4.80A
Module Efficiency --------------11.7%
Operating Temperature ---- -40 to +85C
Maximum System Voltage ---1000V DC
MECHANICAL DATA
-------------------------------------------------------
Solar Cell --- 36 Mono-crystalline 125 x 125mm
Frame ------- Anodized aluminum
Weight ------ 8kg
Dimension -- 1196 x 534 x 35mm
TEMPERATURE COEFFICIENTS
-------------------------------------------------------
Nominal Operating Cell Temp.(NOCT) --- 45+/-2 C
Voltage Temp. Coefficient(Voc) ---------- -0.36%/C
Current Temp. Coefficient(Isc) ----------- +0.033%/C
Power Temp. Coefficient(Pmpp) --------- -0.44%/C
Minimum Power Tolerance ---------------- +/-5%
