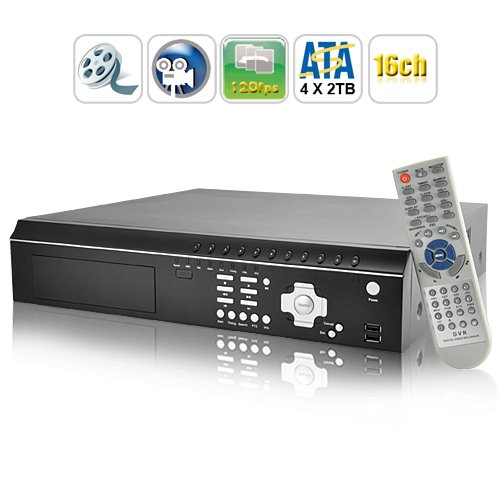

16 Channel DVR Security System with 4 SATA HDD Interfaces

This DVR Security System is ideal for small business, office, factory or even your executive home. You can have up to 16 security cameras (PAL or NTSC) setup around your premises, and comfortably take control of them from your office. This DVR system comes with an abundance of features such as:
Motion / Alarm triggered recording: Automatically starts recording when the external alarm is triggered or something moves in front of any of the 16 security cameras
Pre-recording: The DVR will actually record the video footage just before the alarm/motion is triggered, so you know what is happening before AND afterwards
Scheduled Recording: For routine security surveillance purposes
Video Masking: to protect your privacy during recording without compromising your security
Email Alert, USB backup, Alarm out and much more ...

With support for TCP/IP, DHCP, Static IP and PPPOE, it is possible to connect the DVR Security System to your LAN or even the Internet. Whether you are just out having lunch at McDonalds or flying half way around the world to attend a business meeting, you can always watch who is ruining your garden or which of your employee has been lazy, as well as command your security system to capture still images and videos as solid evidence for further legal actions.

Manufacturer Specifications

Main Function: 16 Channel Digital Video Recorder (DVR)
Video System: PAL, NTSC
Video Compression: h.264
Storage Type: 4 x Internal HDD, up to 2 TB each (not included)
power consumption: 32W (without HDD)
Menu Languages: English
Number of Camera Inputs: up to 16
Output VGA resolution: 800x600, 1024x768, 1280x1024
Menu Option: Basic, Live, Record, Network, Alarm set, Exception, P.T.Z., Preview, User, Backup, Tools
Video Display: Single or 16 Cameras
Recording Frame Rate: 25 (PAL) or 30 (NTSC) FPS
Total Frame Rate: 480(NTSC) or 400(PAL) FPS (Max, Accumulative)
Recording Resolution: CIF
Overwrite Mode: Cycle
Video Quality: Normal, Medium, Superior, Best, Custom
Recording Mode: Schedule / Motion Detection / Alarm Triggered
Video Masking: Yes
Input:
- Video Input: 16 x BNC Connector, 1.0V p-p/75 Ohm
- Audio Input: 16 x BNC Connector
Output:
- Video: 1 channel TV output, BNC, 1.0Vp-p, 75 Ohms
- Video VGA
- Audio: 1 Channel single AV
- USB: USB 2.0 x 2 (for USB backup)
Ethernet: Wired RJ-45
IP Address: Static or DHCP
Email Alert: Yes
Software Requirement:
- OS: Windows 2000/XP/Vista
- Video Card Memory: 128 Mb at least
- Network card: 10/100/1000M
- Browser: IE (Recommanded)
- System Auto Recovery: Yes
- Software: Remote Surveillance DVR Client
Working Temp: 5 to 50 C
Working Humidity: 10% to 90%
Power Supply: 220 V, 50 Hz
dimension: 432(W) x 375(L) x 96(h) mm
Manufacturer Ref: JVJPRXKE9W6V



Product Notes

Comes with full featured remote controller
You can easily change the BNC connection to an RCA AV type with a simple BNC to RCA coupler adapter
This product is sold without any HDDs (hard disk drives). You should install your preferred brand and size into any one of the three primary slots
H.264 compression to maximize network speed and reduce video lag
This DVR supports "pre-record", which means you can set the DVR to record videos before the alarm/motion-detection is triggered
USB backup recording files to USB flash drive, CD-RW or USB HDD ( USB 2.0 only)
4 x 2 TB HDD can provide massive 8 TB of storage space for 16 channels to record continuously for 4 weeks at least
If you are looking for DVR sets complete with 4 x Cameras and 500 GB HDD, please check out I39, I40, I41 or I42



Package Contents for CVST-E105

16 Channel DVR
Power Cable
Remote Controller
User Manual
Software CD
Screws
4 x SATA Cable
USB Mouse
