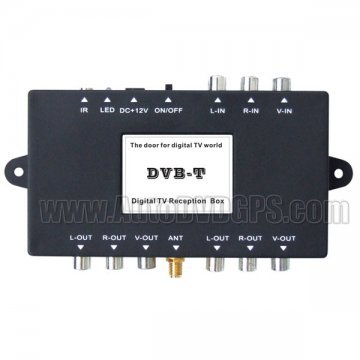

DVB-T digital receiver box for receiving free digital TV directly in your car, with 3 RCA Video OUT and R/L Audio OUT for connecting your choice of such devices as a car DVD player or a car LCD screen.
What better way to ride into the future than installing your own DVB-T tuner in your car and choosing from the hundreds of channels already provided, and the hundreds more on their way soon. With such cutting edge digital TV functions as EPG program guide, 9 channel preview, teletext, and a customizable OSD menu, your car will become a complete digital media center.

Main functions:

Automatic Channel Searching By Country: China/England/Germany/France...

Support multiple Language: English/German/French/Italian/Spanish/Turkish/Greek/Russian/Czech/Czechoslovak/Vietnamese/Chinese
Auto Save Channels
Support High Speed Moving Signal Receiving, if your local signal is 16/QAM, it supports maximum speed 110K/H. 64/QAM, supports 80K/H
High Ratio of Signal-to-Noise
Highly sensitive response
Low power consumption
Electronic Program Guide (EPG): Detailed Information of Programs
EPG Time Table: Program Guides for the Day
Teletex
Support LCN
Support APS
Parameters:
Receiving Freq: UHF 470 MHz~ 862MHz

VHF: 174 MHz~ 230 MHz

Input Impedance: 75Ω

Signal Level: -78dBm ~ -20dBm

Connector Type: SMA jack or customize

Channel Band Width: 6M/7M/8M

Standard: DVB-T EN300 744

Constellation: QPSK,16QAM,64QAM

Guard Interval: 1/32,1/16,1/8,1/4

FEC: 1/2,2/3,3/4,5/6,7/8

COFDM Carrier Mode: 2K And 8k Non Hierarchical/Hierarchical

Standard: MPEG-2 MP@HL

Transport Stream :ISO/IEC 13818-1 MPEG-2
2 Full Sets of AV Output (Video Output, Left Output, Right Output) x 2
Video Aspect Ratio: 4:3 /16:9

Video System: PAL/NTSC

Video Output : 1 0.3Vpp

Video Resolution : 720x576@25fps or 720x480@30fps

Power Source: Direct From Car Battery or Car Cigarette Power Adapter
Full remote control: yes
Unit Size: 130mm * 80mm * 20mm
Gross Weight: 0.5kg
