5 (FIVE)

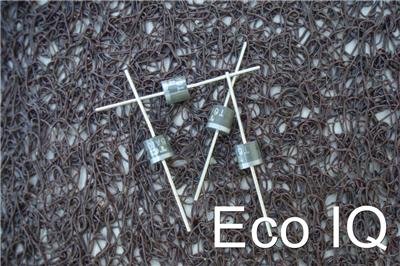

Rectifier / Blocking Diodes

Each: 6Amp 1000v (1Kv) ( see more spec. below)



Axial Lead Silicon Rectifier Diodes
Maximum Repetitive Peak Reverse Voltage: 1000V
Maximum RMS Voltage: 700V
Maximum DC Blocking Voltage: 1000V
Maximum Average Forward Rectified Current (60Hz, resistive or inductive load. Derate current by 20% for capacitive load): 6A
Peak Forward Surge Current (8.3ms single half sine-wave superimposed on rated load-JEDEC Method): 400A
Operating Junction and Storage Temperature Range: -55° to +125°C

Maximum Forward Voltage (IF=6A): 0.95V
Maximum DC Reverse Current at Rated DC Blocking Voltage (TA=25°): 5uA
Maximum DC Reverse Current at Rated DC Blocking Voltage (TA=100°C): 400uA
Typical Junction Capacitance (VR=4V, f=1MHz): 100pF
Maximum Thermal Resistance Junction to Ambient: 10°C/W



Please check our store for

* Solar cells

*TAB wires

*BUS wires

*FLUX pens




What Is a Blocking Diode?

A blocking diode is a device that controls current flows inside of photovoltaic systems. It is one way that valves are used in electrical circuits, and it is very easy to use and convenient because they save a lot of time. A blocking diode is vital to maintain isolation of power supplies in normal operating situations as well as in emergency electric circuit failures. It makes sure that currents from one power supply does not find entry into another.


Function

* What exactly is a blocking diode? It is a device that is used to prevent reverse electrical currents from flowing back from a specified battery bank through solar panels. A blocking diode is generally necessary only when someone is not using a charge controller.
Prevention/Solution
* A blocking diode is also used for taking preventative measures. A blocking diode works to protect photovoltaic modules from voltage spikes that are created by permanent magnet producing devices like ones that are used in both hydro and wind generators. It is also necessary for every photovoltaic module to stop nighttime power draw via the modules.

Significance

Any solar energy systems with numerous panels should should consist of blocking diodes in order to protect the panels from other panels during times of panel breakdown, ground fault issues, shading, and also for isolating them away from batteries during the night.

Benefits

Why exactly is a blocking diode important? In essence, a blocking diode performs three major operations. It keeps batteries from alternating solar panels. It is used for preventing the ability of batteries to charge power grids, and it also prevent batteries from charging wind generating devices.



Warning

If you do not properly and efficiently install a blocking diode into your renewable energy system (whether that renewable energy system is solar, water or wind), your batteries will never work efficiently. Because of this, it is important to make sure that you properly and correctly install your blocking diode. Also, a blocking diode does not protect against over currents. To protect against over currents, fuses or breakers should be installed.
