£72.41
Add to Cart
1000' solder cover TAB tabbing WIRE made for solar cell
More than 10 available, 1 sold
Details
Shipping: USPS calculated - check
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

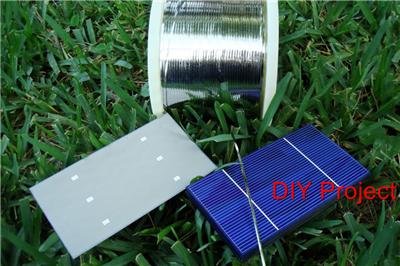

1000' (304,8 Meters) Tab wire for Solar cells
2mm for 1000 Evergreen 3"x6" cells or ANY 6"x6"
NO SOLDER NEEDED - solder already on the wire - save your time
GAUGE: 0,10000MM
WIDTH: 2,0000MM !!!!!!!
MATERIAL: 62SN/36PB/2AG TINNED COPPER
US SIZE: 0.0039" X 0.0787"
SOLDER COATING THICKNESS: 414-600 MICROINCHES/SIDE
Many sellers on eBay will offer you TAB wire - please make sure:
1. The wire is Solder covered for main 2 reasons:
~ solder protects the surface of the copper from oxidation
and
~ provides a layer of solder to form a solder joint ( no solder needed !! - no mess, no stress )
2. The widest TAB wire you can get ( we sell ONLY 2mm ) the best for your project!:
~ easy to work with,
~ wire will provide best conduction
"Tabbing ribbon (flat wire) is a very specialized interconnect for photovoltaic modules. It is made of a copper ribbon or flat wire which is coated in solder. The solder protects the surface of the copper from oxidation and provides a layer of solder to form a solder joint. These solder-coated copper strips are used to channel current from the top and bottom of solar cells (tabbing/stringing) or to collect the electricity from these strings (bussing).
You can think of tabbing wire as roads which travel across a solar cell, and bus ribbon as the highways that connect and tie them together. The main difference: bus ribbon is a bit wider, and sometimes thicker than tabbing ribbon. Bus ribbon is larger in cross-section because it has more electrical current to carry.
Please check our store for
* Solar cells
*TAB wires
*BUS wires
*FLUX pens
http://stores.ebay.com/Do-it-Yourself-projects
Please - ask for combine shipping before making the payment!
Will be easy TO CUT if placed on 6" spool (for 3"x6" cells)
(OR 12" FOR 6"X6" CELLS)
2mm for 1000 Evergreen 3"x6" cells or ANY 6"x6"
NO SOLDER NEEDED - solder already on the wire - save your time
GAUGE: 0,10000MM
WIDTH: 2,0000MM !!!!!!!
MATERIAL: 62SN/36PB/2AG TINNED COPPER
US SIZE: 0.0039" X 0.0787"
SOLDER COATING THICKNESS: 414-600 MICROINCHES/SIDE
Many sellers on eBay will offer you TAB wire - please make sure:
1. The wire is Solder covered for main 2 reasons:
~ solder protects the surface of the copper from oxidation
and
~ provides a layer of solder to form a solder joint ( no solder needed !! - no mess, no stress )
2. The widest TAB wire you can get ( we sell ONLY 2mm ) the best for your project!:
~ easy to work with,
~ wire will provide best conduction
"Tabbing ribbon (flat wire) is a very specialized interconnect for photovoltaic modules. It is made of a copper ribbon or flat wire which is coated in solder. The solder protects the surface of the copper from oxidation and provides a layer of solder to form a solder joint. These solder-coated copper strips are used to channel current from the top and bottom of solar cells (tabbing/stringing) or to collect the electricity from these strings (bussing).
You can think of tabbing wire as roads which travel across a solar cell, and bus ribbon as the highways that connect and tie them together. The main difference: bus ribbon is a bit wider, and sometimes thicker than tabbing ribbon. Bus ribbon is larger in cross-section because it has more electrical current to carry.
Please check our store for
* Solar cells
*TAB wires
*BUS wires
*FLUX pens
http://stores.ebay.com/Do-it-Yourself-projects
Please - ask for combine shipping before making the payment!
Will be easy TO CUT if placed on 6" spool (for 3"x6" cells)
(OR 12" FOR 6"X6" CELLS)
