40' (~12 metrs)

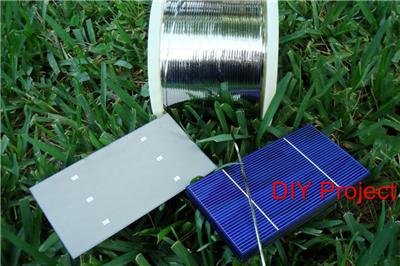

The tabbing wire



Made specifically for Untabbed Solar Cells.



It is Solder Coated so no solder is needed.

40 feet is enough for 40 3"x6" Evergreen cells

(about 1' per cell )

or

it will PERFECT for any solar cells!!!



We offer combined shipping with ALL items in our store - please send us message and we will provide COMBINED invoice! Thank you!



Specifications:



GAUGE: 0.102 MM
WIDTH: 2.000 MM

for best connection!


MATERIAL: 02-0-0040-BLF SILVER PLATED COPPER
SOLDER COATING THICKNESS: 410-600 MICRO INCHES/SIDE





Tabbing ribbon (flat wire) is a very specialized interconnect for photovoltaic modules. It is made of a copper ribbon or flat wire which is coated in solder. The solder protects the surface of the copper from oxidation and provides a layer of solder to form a solder joint. These solder-coated copper strips are used to channel current from the top and bottom of solar cells (tabbing/stringing) or to collect the electricity from these strings (bussing).



You can think of tabbing wire as roads which travel across a solar cell, and bus ribbon as the highways that connect and tie them together. The main difference: bus ribbon is a bit wider, and sometimes thicker than tabbing ribbon. Bus ribbon is larger in cross-section because it has more electrical current to carry. To give you an idea of the size, bus ribbon is generally anywhere from 5mm-6mm wide, although some applications require bus ribbon more than twice as wide.
