SPM005P

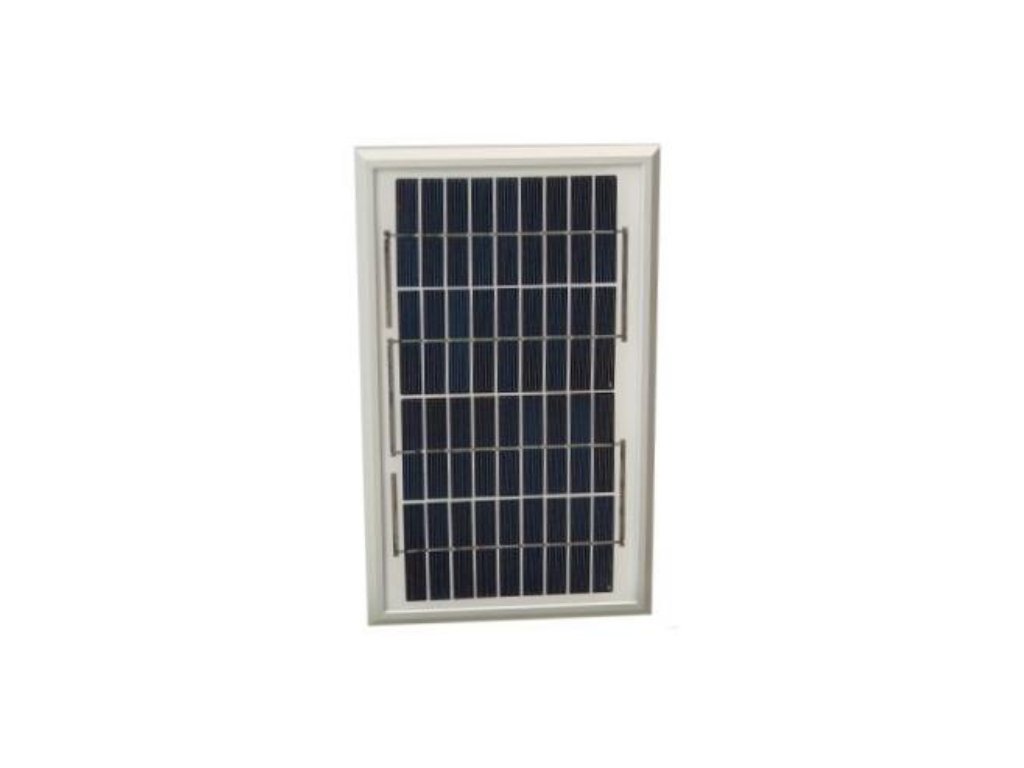

High-efficiency, High-Quality Multicrystalline Photovoltaic Module SOLARTECH POWER manufactures clean, elegant and durable modules with advanced industry-leading performance for different electrical power requirements. It is designed and built to deliver highest efficiency and reliable power for on-grid residential and commercial systems worldwide.
Solartech 5Watt panels could applied in Electrication of villages in remote areas, Power source for summer vacation homes, Emergency communication systems, Microwave/radio repeater stations ,etc.

FEATURE:

 IEC61215, TUV certification
 UL 1703 certification
 Using high efficiency 6’’ Multicrystalline cells.
 Using low iron tempered glass and an EVA pottant with PET back sheet to encapsulated cells.
 Anodized aluminum frame protected structural strength.
 10 years limited warranty of 90% power output and 25 years limited warranty of 80% power output.
.
Solartech Power, Inc.
SPECIFICATIONS
UL No.:E309468 TUV No.:0000022551 IEC No.:C1-ASN07001

IV CURVES
ELECTRICAL CHARACTERISITICS
SPM006P SPM005P SPM004P
Power at STC(Pm) 6W 5W 4W
Maximum power voltage(Vpm) 17.3V 17.1V 16.2V
Maximum power current(Ipm) 0.35A 0.29A 0.24A
Open circuit voltage(Voc) 21.8V 21.7V 21
Short circuit current(Isc) 0.38A 0.31A 0.28
Tolerance ±5% ±5% ±5%
Module efficiency 7.7% 6.5% 5.1%
Standard test conditions Temperature 25℃, Irradiance 1000W/㎡, AM=1.5
Maximum system voltage 1000V DC Series fuse rating 10A
Temperature coefficient Isc:0.05%/K Voc:-0.36%/K Pmax:-0.46%/K
AMBIENT CONDITIONS
Operating Temperature -40℃ to +85℃
