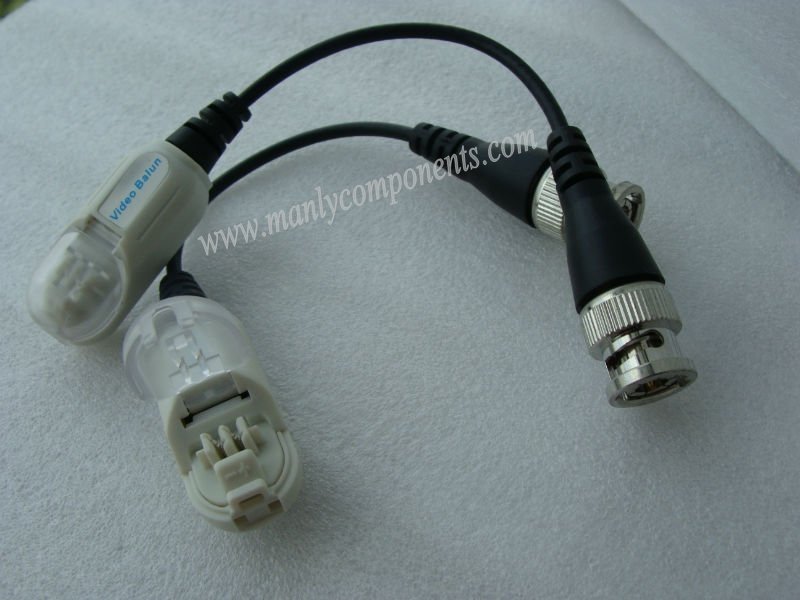

100pairs High Quality CCTV BNC Video Balun Camera Cat5 Transceiver (screwless)
More than 10 available
Details
Shipping: USPS calculated - check
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Product Description
1 channel UPT video balun CCTV video balun
Features and specifications:
Full-motion CCTV video at distances up to 300 meters when used with any passive transceiver
Up to 1500m with any active UTP video receiver
Tool-less, installs in seconds, no need to strip the wires
NTSC, PAL and SECAM video format
No power required
60dB crosstalk and noise immunity
Compact size and easy installation
Specifications:
Frequency response DC to 8MHz
Attenuation 0.5dB typ
CMRR 60dB
Impedance BNC:75 ohms
Terminal:100 ohms
Working temperature -10 degree to 70 degree
Storage temperature -30 degree to 70 degree
Humidity less than 95%
Dimension 56*17*15mm
Material ABS plastic
* all specifications are subject to change without notice!
Step 1: It incorporates a transparent cover which opens to allow access to the CAT-5 wire connector. The cover flips up easily by inserting your fingernail under the two hooks behind the cover and gently pulling upwards.
Step 2: Hold straightened wire pair approximately 3/4 of an inch from the end and insert firmly (with a slight upward motion) into rectangular opening just below "+" and "-" symbols. NO NEED TO STRIP THE SIRES! Designed for use with solid 24 AWG wire.
Step 3: Close cover firmly until completely closed. The correct wire placement in the connector can be observed when cover is closed and the self-contained IDC connection will be complete.
Processing Time: Ships out within 7 days
Free Shipping by: DHL or FedEx
1 channel UPT video balun CCTV video balun
Features and specifications:
Full-motion CCTV video at distances up to 300 meters when used with any passive transceiver
Up to 1500m with any active UTP video receiver
Tool-less, installs in seconds, no need to strip the wires
NTSC, PAL and SECAM video format
No power required
60dB crosstalk and noise immunity
Compact size and easy installation
Specifications:
Frequency response DC to 8MHz
Attenuation 0.5dB typ
CMRR 60dB
Impedance BNC:75 ohms
Terminal:100 ohms
Working temperature -10 degree to 70 degree
Storage temperature -30 degree to 70 degree
Humidity less than 95%
Dimension 56*17*15mm
Material ABS plastic
* all specifications are subject to change without notice!
Step 1: It incorporates a transparent cover which opens to allow access to the CAT-5 wire connector. The cover flips up easily by inserting your fingernail under the two hooks behind the cover and gently pulling upwards.
Step 2: Hold straightened wire pair approximately 3/4 of an inch from the end and insert firmly (with a slight upward motion) into rectangular opening just below "+" and "-" symbols. NO NEED TO STRIP THE SIRES! Designed for use with solid 24 AWG wire.
Step 3: Close cover firmly until completely closed. The correct wire placement in the connector can be observed when cover is closed and the self-contained IDC connection will be complete.
Processing Time: Ships out within 7 days
Free Shipping by: DHL or FedEx
