£12.38
Add to Cart
Customized USB cables as your demands, free sample cables but DHL charges
2 available
Details
Shipping: USPS calculated - check
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

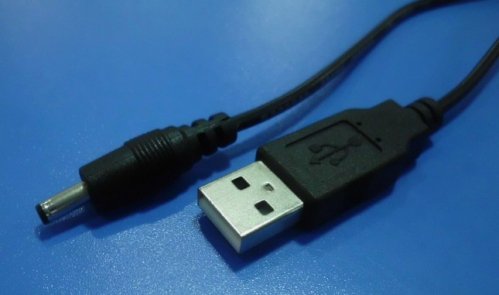

USB Cable
We are manufacturer to produce and process USB cables, if you need to customize USB cables from us, please confirm your demand meets the following standard specifications before place order. Or you can contact us for more information. We are looking forward to get your orders.
Get the sample first if you need to customize, auction the link then leave messages which are your USB cables demands.
We only get the shipping charges of the sample. Sample cables can be free. If you have forwarder in China, you can email us: [email protected] Thank you!
Description
1. Cord
White Green 28AWG HDPE 0.31mm (insulated thickness) ; Conductor OD: 0.381mm
Red Black 28-20AWG SR-PVC 0.25mm #28 #26 #24 #22 #20
Conductor sleeve OD:
Spec. #28/28 #28/26 #28/24 #28/22 #28/20
OD 4.06mm 4.32mm 4.57mm 4.83mm 5.21mm
2. Standard
28AWG*1P 28AWG*2C 7*36 19*40
28AWG*1P 26AWG*2C 7*34 19*38
28AWG*1P 24AWG*2C 7*32 19*36
28AWG*1P 22AWG*2C 7*30 19*34
28AWG*1P 20AWG*2C 7*28 19*32
Conductor material: Copper cord with tinned
3. Cord insulated material
White Green HDPE(polyethylene) PP(HNS) Red Black SR-PVC(semi rigid PVC)
#3366 #3040
#3364
Thickness 0.31mm 0.17mm 0.25mm
4. Details:
a. twist 60-80mm
b. Aluminum Mylar overlap: 25%
c. Ground cord 7/0.127 Copper with thinned
d. Low-speed: No
5.Braid（1）shielded : 65%
（2）Copper with tinned
5. Sleeve
a: Nom. Thickness:0.64mm
b. Printed: Customize
USB SHIELDED (Gauge/1P+Gauge/2C) UL CM 75℃ -UL Vendor ID
c. Low-speed: No
d. Conductor sleeve OD:
#28/28 4.06mm
#28/26 4.32mm
#28/24 4.57mm
#28/22 4.83mm
#28/20 5.21mm
6.Extent of USB cable
AWG 32 30 28 26 24
max.（m） 1 2 3 4 5
7.USB particular required OD:
AWG 32 30 28 26 24
OD(mm) 2.0/2.4 2.2/2.4 2.8/3.0 4.5/5.0 5.0/5.2
8.Cord OD
AWG Material USB.1 USB2.0
32 HDPE 0.45 0.45
PEF+PP 0.45 0.45
30 HPPE 055/0.66 0.55/0.66
PEF+PP 0.6 0.6
28 HPPE 0.9-0.65 1.0(19/0.08) 0.9-0.65 1.0(19/0.08)
PEF+PP 0.9 0.9
26 HPPE 1.2/ 1.0 1.2
PEF+PP 1.2 1.2
24 HPPE 1.45/ 1.2 1.45
PEF+PP 1.45 1.45
9. USB speed
USB1.1 USB2.0
12Mbps 480Mbps (Max. ) Low speed: 1.5 Mbps
10. USB cables application:
Keyboard monitor
Printer Scanner
Modem
We are manufacturer to produce and process USB cables, if you need to customize USB cables from us, please confirm your demand meets the following standard specifications before place order. Or you can contact us for more information. We are looking forward to get your orders.
Get the sample first if you need to customize, auction the link then leave messages which are your USB cables demands.
We only get the shipping charges of the sample. Sample cables can be free. If you have forwarder in China, you can email us: [email protected] Thank you!
Description
1. Cord
White Green 28AWG HDPE 0.31mm (insulated thickness) ; Conductor OD: 0.381mm
Red Black 28-20AWG SR-PVC 0.25mm #28 #26 #24 #22 #20
Conductor sleeve OD:
Spec. #28/28 #28/26 #28/24 #28/22 #28/20
OD 4.06mm 4.32mm 4.57mm 4.83mm 5.21mm
2. Standard
28AWG*1P 28AWG*2C 7*36 19*40
28AWG*1P 26AWG*2C 7*34 19*38
28AWG*1P 24AWG*2C 7*32 19*36
28AWG*1P 22AWG*2C 7*30 19*34
28AWG*1P 20AWG*2C 7*28 19*32
Conductor material: Copper cord with tinned
3. Cord insulated material
White Green HDPE(polyethylene) PP(HNS) Red Black SR-PVC(semi rigid PVC)
#3366 #3040
#3364
Thickness 0.31mm 0.17mm 0.25mm
4. Details:
a. twist 60-80mm
b. Aluminum Mylar overlap: 25%
c. Ground cord 7/0.127 Copper with thinned
d. Low-speed: No
5.Braid（1）shielded : 65%
（2）Copper with tinned
5. Sleeve
a: Nom. Thickness:0.64mm
b. Printed: Customize
USB SHIELDED (Gauge/1P+Gauge/2C) UL CM 75℃ -UL Vendor ID
c. Low-speed: No
d. Conductor sleeve OD:
#28/28 4.06mm
#28/26 4.32mm
#28/24 4.57mm
#28/22 4.83mm
#28/20 5.21mm
6.Extent of USB cable
AWG 32 30 28 26 24
max.（m） 1 2 3 4 5
7.USB particular required OD:
AWG 32 30 28 26 24
OD(mm) 2.0/2.4 2.2/2.4 2.8/3.0 4.5/5.0 5.0/5.2
8.Cord OD
AWG Material USB.1 USB2.0
32 HDPE 0.45 0.45
PEF+PP 0.45 0.45
30 HPPE 055/0.66 0.55/0.66
PEF+PP 0.6 0.6
28 HPPE 0.9-0.65 1.0(19/0.08) 0.9-0.65 1.0(19/0.08)
PEF+PP 0.9 0.9
26 HPPE 1.2/ 1.0 1.2
PEF+PP 1.2 1.2
24 HPPE 1.45/ 1.2 1.45
PEF+PP 1.45 1.45
9. USB speed
USB1.1 USB2.0
12Mbps 480Mbps (Max. ) Low speed: 1.5 Mbps
10. USB cables application:
Keyboard monitor
Printer Scanner
Modem
CN, Guangdong
