The Netbell-K is a compact, self-contained design that was created with ease-of-use in mind. The system is built on TCP/IP platform with a built-in web server and special software designed for scheduling a bell system, all software and mounting hardware required for installation and operation are included. With the built-in web interface, you can access, control and schedule bells over a network or the Internet, no additional software or designated computer required. With the special designed easy-to-use BellScheduler desk app, manage & schedule multiple Netbells in a few clicks, making the management of your bell systems incredibly easy. It’s an ideal solution for schools, factories to build a fully automated web-based timed alert system for signaling class changes, shift rotations, breaks and any other timed signal applications.
Intended to be an all-in-one solution, the Netbell-K features a high quality 6 inch high output bell (86dB) that can cover up to 8000 sqf office area, and a completely wired web-based bell controller installed within a NEMA-rated box. There is an additional relay output (1-Form-A relays 110/220@10A) with a CP connector that provides quick connect/disconnect a second bell (not included) if you have a larger area needs to be covered. The external bell can be connected at 250 ft away with 18AWG cable (500 ft/16AWG) to the Netbell-K server with a suitable power source.
It's ready to go out of the box, and you need only connect the unit to your AC outlet and an existing network with the provided power transformer and cable; it can be connected anywhere on the network and does not require a direct connection to a PC. For those who wish to forego networking the Netbell-K, it is also able to function as a stand-alone device. Connecting the unit to a PC, upload the bell schedules, then remove, and it will function as scheduled.

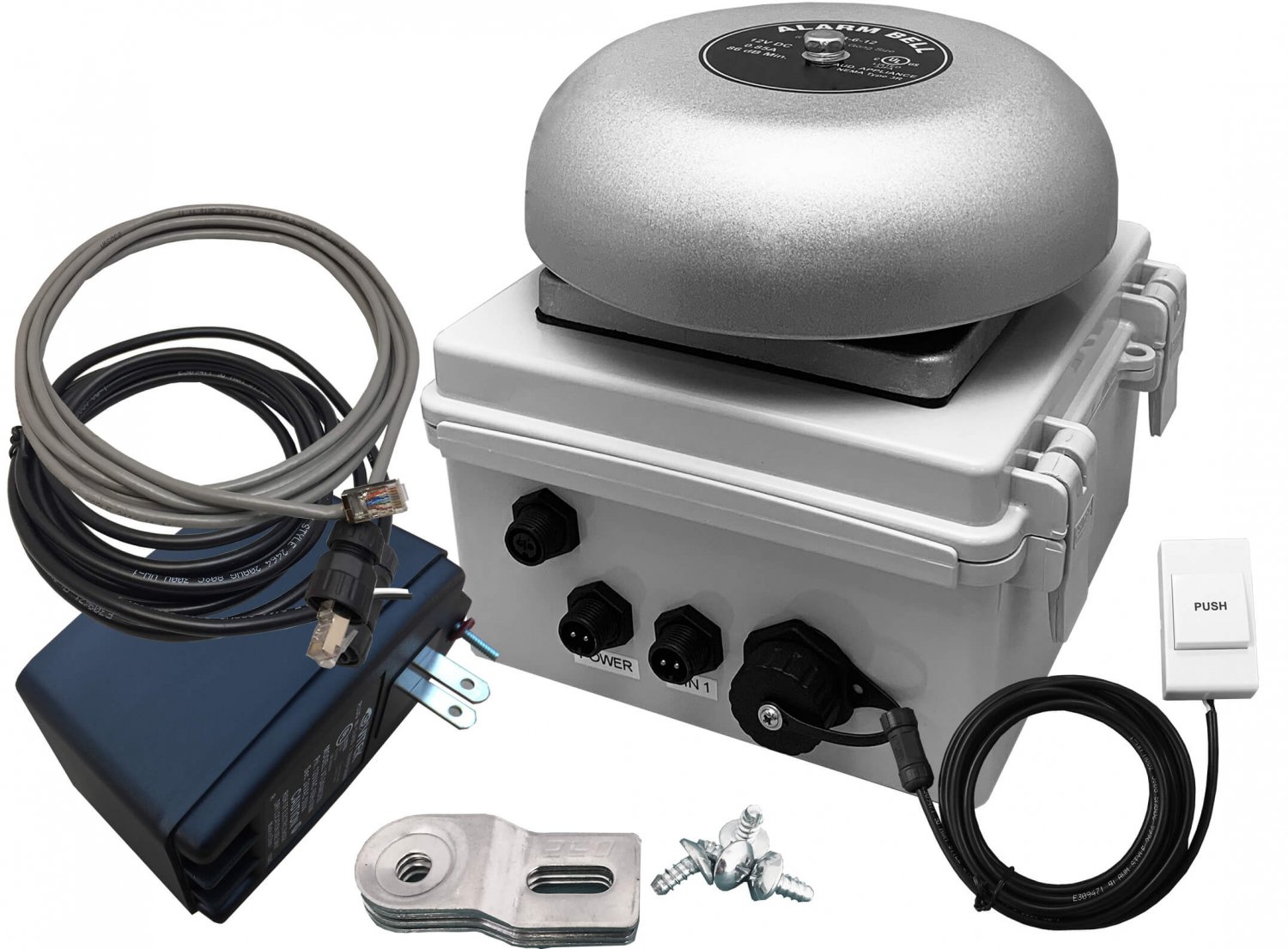

What's in the Box
Each Netbell-K kit includes:
• Netbell-K SERVER
• One 3-meter power cable
• One 3-meter RJ45 network cable
• One 12VAC power supply
• Wall mounting brackets and hardware
The Key Features
•COMPACT AND SELF-CONTAINED: Network enabled, all-in-one automatic bell system with the hardware and software you need to control your timed alert system. No extra software or designated computer required. Adding schedules from any computer on your network without having to go through the firewall
•FULLY PROGRAMMABLE: Up to 500 programmable event schedules, each event can be set to a different duration for different break time. Create different schedules for different events in a txt format and switch the schedules as needed with a few clicks
•EASY TO USE: With the built-in remote function and BellScheduler desk app, you can manage & schedule multiple Netbells whether in a single building, multiple buildings or multiple locations from one easy-to-use interface, without the need of logging in to each device or hard-wiring the bells to a central control station, making the management of your bell systems incredibly easy
•EASY TO INSTALL: Use as either a network or a standalone device, connect to network or directly to computer for initial setup then it will work as scheduled. With the built-in Real Time Clock and user settable NTP server, you can accurate control of when the bells ring (HH:MM:SS, MM/DD/YYYY, SUNDAY-SATURDAY) or pull the time from your existing NTP server
EASY TO EXPAND: An additional relay output with a CP connector that provides quick connect/disconnect a certified second bell if you have a larger area needs to be covered (second bell is not included, purchased separately). With the remote function and BellScheduler App, you can add multiple bell systems as needed that can share the same schedules or add different schedules
Specifications:
• 10M/100M RJ45 Internet interface with connection and activity LEDs
• Input Power: 12VAC
• Bell: 6" Inch 12 Volt DC/Die Cast Aluminum Enclosure, Volume: >= 86Db, IP24 Rated
• Enclosure: ABS, IP67 /150mm x 150mm x 90mm (Mounting hardware supplied)
• Accessories: 3 Meters Power Cable/3 Meters RJ45 Network Cable
• External Bell Output: Dry contact, 1-Form-A relays 110/220 10A
• On board temperature sensor and input voltage sensor
• Working Temperature from 0 to +60 Celsius
• Storage Temperature from -40 to +125 Celsius
• Humidity from 10% to 80% non-condensing
• Supported Protocols: HTTP/HTTPS/SMTP/SNTP
