SPL-Lab RTA Pro Meter
4 available, 1 sold
Details
Shipping: United Kingdom: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
USB RTA Meter(Pro Edition)
USB microphone for measuring AFC
Frequency range from 10 to 20,000 Hz
Amplitude range from 50 to 120 dB
Calibrated according to Audiomatica CLIO
Built-in precision ADC 16 Bit
Mini-USB receptacle
Free software
Description
The USB microphone intended for measuring the amplitude-frequency characteristic (AFC) and the harmonic distortion coefficient of an acoustic systems in the entire audible frequency range with high accuracy. The majority of the analogues use external amplifiers and ADC boards, which make considerable changes to the measured signal and require calibration. The precision analog-to-digital converter and low frequency amplifier inbuilt in USB RTA Meter allow receiving accurate values of measured signal in digitalised form on a PC or Android smartphone/tablet PC without additional calibration. The omnidirectional electret microphone inset that is used in the device has linear AFC which minimises the characteristic spread among the devices within one batch. High sensitivity of the device is achieved by using the inbuilt low frequency amplifier; lower-range value is 50 dB. A user can start work at once after the software provided in the package is installed and the USB RTA Meter is connected to a PC. The UAB microphone can also operate with any other software, which supports standard sound cards on Windows, Mac OS, Android and iOS! In spite of its low price the USB RTA Meter (Pro Edition) stood in the line-up with such distinguished systems as Audiocontrol, Behringer, Phonic, Audiomatica, etc.
Ergonomics

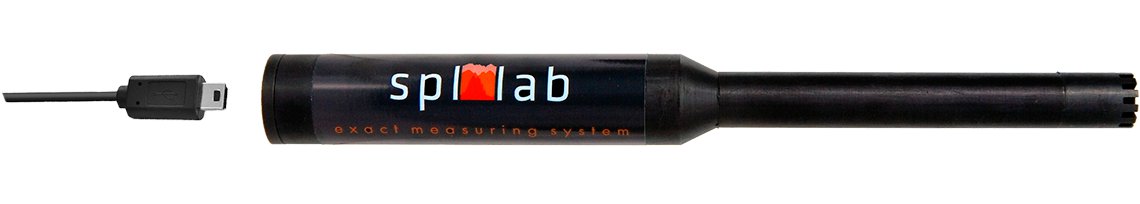

The USB RTA Meter (Pro Edition) USB microphone has body of anodized aluminum that contains the highly sensitive omnidirectional electret microphone inset, low frequency amplifier and ADC unit with USB port for transmitting data. In the body of the device around the microphone inset there are special notches for receiving smoother directional characteristic. The acoustically correct construction of the device allows receiving an input signal that is close as possible to the original one. If necessary the microphone can be installed on the stand.
Functions
Measuring the characteristics of home, car or concert hall acoustic systems in the entire audible range
Setting of acoustic systems
Defining and setting the cut-off frequencies for crossovers and inbuilt filters
Fine harmonizing of an audio system components
Preparation and holding autosound contest on the sound quality (SQ)
Spectral analysis of a signal - getting the AFC
Quantitative evaluation of the frequency-response ripple
Defining the harmonic distortion coefficient
Receiving and analysing the signal waveform
Package Contents
USB microphone
Connecting USB cable for connecting to a PC
Spl-Lab Measuring Center software for Windows and Android
Audio-CD with audio tracks for tuning (sine, sweep-tones, noise)
Case for carrying around and keeping (optional)
