Operating form and model number

Current type Operating form Contact form Model number Supply voltage
DC NPN NO TL-Q5MC1 12-24Vdc
DC NPN NO TL-Q5MC1-Z 10-30Vdc
DC NPN NO TL-Q5MC1-5V 5Vdc
DC Two wires NO TL-Q5MD1 12-24Vdc
AC Two wires NO TL-Q5MY1 90-250Vac

Following this above table please send us a message with your Model required

General

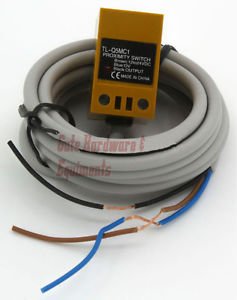

Model number TL-Q5M series
External dimensions 17x17x28
Installation type Non-shielded
Detection distance 5mm±10%
Setting distance 0-4 mm
Standard detected object Mild steel (18x18x1mm)
Response frequency NPN or PNP: 0.6kHz; Two wires of DC: 0.5kHz; Two wires of AC: 25Hz
Sensing object Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Supply voltage 12-24Vdc, 10-30Vdc, 5Vdc; 90-250Vac, 50/60Hz
Rated output current N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA
Leakage current N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max
Hysteresis 10% max. of sensing distance
Protection circuit-DC Reverse connection protection, Surge suppressor, Short-circuit protection
Protection circuit-AC Surge suppressor
Insulation resistance 50MΩ min (between charging part and housing)
Dielectric strength 1000Vac, 1min (between charging part and housing)
Temperature influence-1 ±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°C
Temperature influence-2 ±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°C
Voltage influence ±10% max. of sensing distance in rated voltage range ±15%
IP Rating IP67
Cable length 1.5m
Material Case: ABS; Sensing surface: ABS
