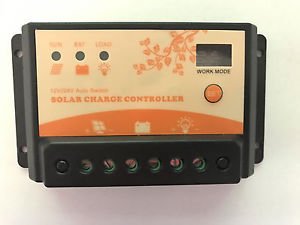

Solar Panel Charger Controller for Best Performance in Charging your battery and many more applications compatible with all Gate Operators and Solar Panels up to 42V and 100W, 2-10A

Product Features:

1. Build-in industrial micro controller.

2. Input and output LED display,a simple 4-stage battery capacity indicator.

3. Fully 4-stage PWM charge management.

4. Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5. Dual mosfet Reverse current protection ,low heat production.

6. Model is equipped with USB cell phone charger and Triple DC output.

7. Solar panel and battery input are tree-free design.

8. 5W to 100W, 12V to 42V and 2A to 8A best performance in battery charging purposes and many other applications.
Note: The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL it is not suited for nickel metal hydroxide, lithium ions or other batteries.


Comes with Led Indicators for charging following

Press the ON/OFF button each time to disconnect or re-connect the load output.

ATTN 1.connector the solar panel by the "solar input" port if the solar panel is already with a 5.5-2.1mm DC connector. do not connect another solar panel to the tool free connector at the same time.

ATTN 2.DC output can support any 12V DC load, such as LED lamp or fan.

Technical Parameter:

Model

TMT-12-24

Batt voltage

12V

Charge current

10A

Discharge current

10A

Max Solar input

42V

Charge drop
