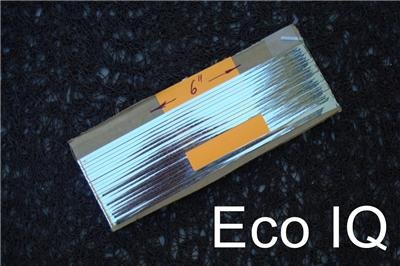

50' The tabbing wire

Made specifically for Untabbed Solar Cells.


It is Solder Coated so no solder is needed.


110 feet is enough for ~110 cells (about 1' per 3x6 cell )

OR 3 x 36 cells panel



We offer combined shipping with ALL items in our store - please send us message and we will provide COMBINED invoice! Thank you!



Specifications:

GAUGE: 0.1000 MM
WIDTH: 2.000 MM

for best connection!


MATERIAL: 02-0-0040-BLF SILVER PLATED COPPER
SOLDER COATING THICKNESS: 414-600 MICRO INCHES/SIDE


Tabbing ribbon (flat wire) is a very specialized interconnect for photovoltaic modules. It is made of a copper ribbon or flat wire which is coated in solder. The solder protects the surface of the copper from oxidation and provides a layer of solder to form a solder joint. These solder-coated copper strips are used to channel current from the top and bottom of solar cells (tabbing/stringing) or to collect the electricity from these strings (bussing).


You can think of tabbing wire as roads which travel across a solar cell, and bus ribbon as the highways that connect and tie them together. The main difference: bus ribbon is a bit wider, and sometimes thicker than tabbing ribbon. Bus ribbon is larger in cross-section because it has more electrical current to carry. To give you an idea of the size, bus ribbon is generally anywhere from 5mm-6mm wide, although some applications require bus ribbon more than twice as wide.
