Input voltage: AC110V
Network communication via TCP/IP
Input Format of Reader: Wiegand 26-bit
PC operate system: Win XP, Win 7,Win 8, Win10; Mobile phone App operate system: iOS,Android
Door Controlled: 4 door (Get in the door by swiping card, and get out door by button)
Access Board:
Communication: TCP/IP
Software Supportable Database: Access & SQL
Power Supply Input: DC12V, 4-7A
Input Format of Reader: Wiegand 26 bit
Quantity of Readers: 4 units
Door Controlled: 4 door (get in the door by swiping card, and get out door by button)
Quantity of Users: 20,000 users
Quantity of Event Buffers (offline): 100,000 event buffers
Max Distance from Reader to Controller: 100m (Suggestion distance 80m)
Inter block: Yes
First card unlocking: Yes
Keypad (Card and password, supper password): Yes
Open door in remote distance: Yes

Metal Power Box:
Built-in reverse surge protection and Short-circuit protection function
With charge and discharge function,can add a 7AH 12V DC battery,can meet the needs of an electric mortise lock,a card reader and a controller to work 35 hours after power failure (External battery not included)
Support max 3 electric bolt lock or 3 280KG magnetic lock
AC Input: AC110V/60Hz
DC Output: DC12V/5A
Power: 50W
12V/24V Adjustable Output: No
Size: 11x9.2x2.6inch
Weight: 2.5Kg

3A Power Supply:
Worldwide voltage input AC 110-240V/3A
External Remote Templates: Yes
Set NC/NO output,can control various types of electric locks

RFID Reader:
Frequency: 125Khz
Card Type: EM ID Card (Can't support ..., Cobra, APCiK etc)
Reading range: 3~15cm
Intput Voltage: DC9-15V; Max. 70mA

Touch Exit Button:
Mechanical Life: >500000
Output Contact: NO/NC/COM

USB Reader:
Card Type: 125Khz
USB to PC
Output format: Last 8 digits
Note: This kit need read last 8 digit

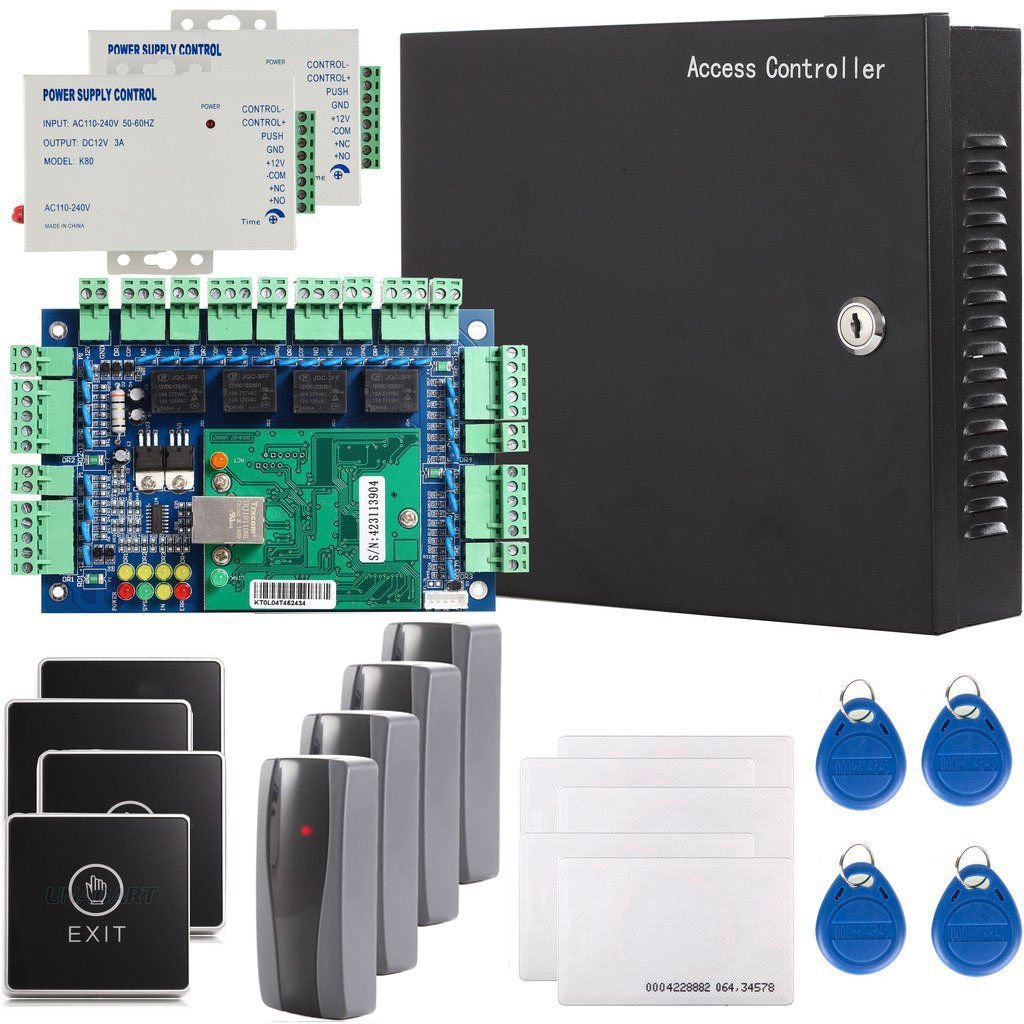

Package:
1 x Access Control Board
1 x Metal Power Box
2 x 3A Power Supply
4 x RFID Readers
4 x Exit Buttons
5 x ID Cards
5 x Keyfobs
1 x USB Reader
1 x CD
